How can dv3d.3d_vector display a full 3d vector plot?

[Rex-Diego]

I want to have a plot like this one

in this site.

but following the tutorial , can only get . It's only a slider which display a plane 3d vectors.

And after google all around, I cannot find some tips for the real 3d vector plot, anyone can help me?

[doutriaux1]

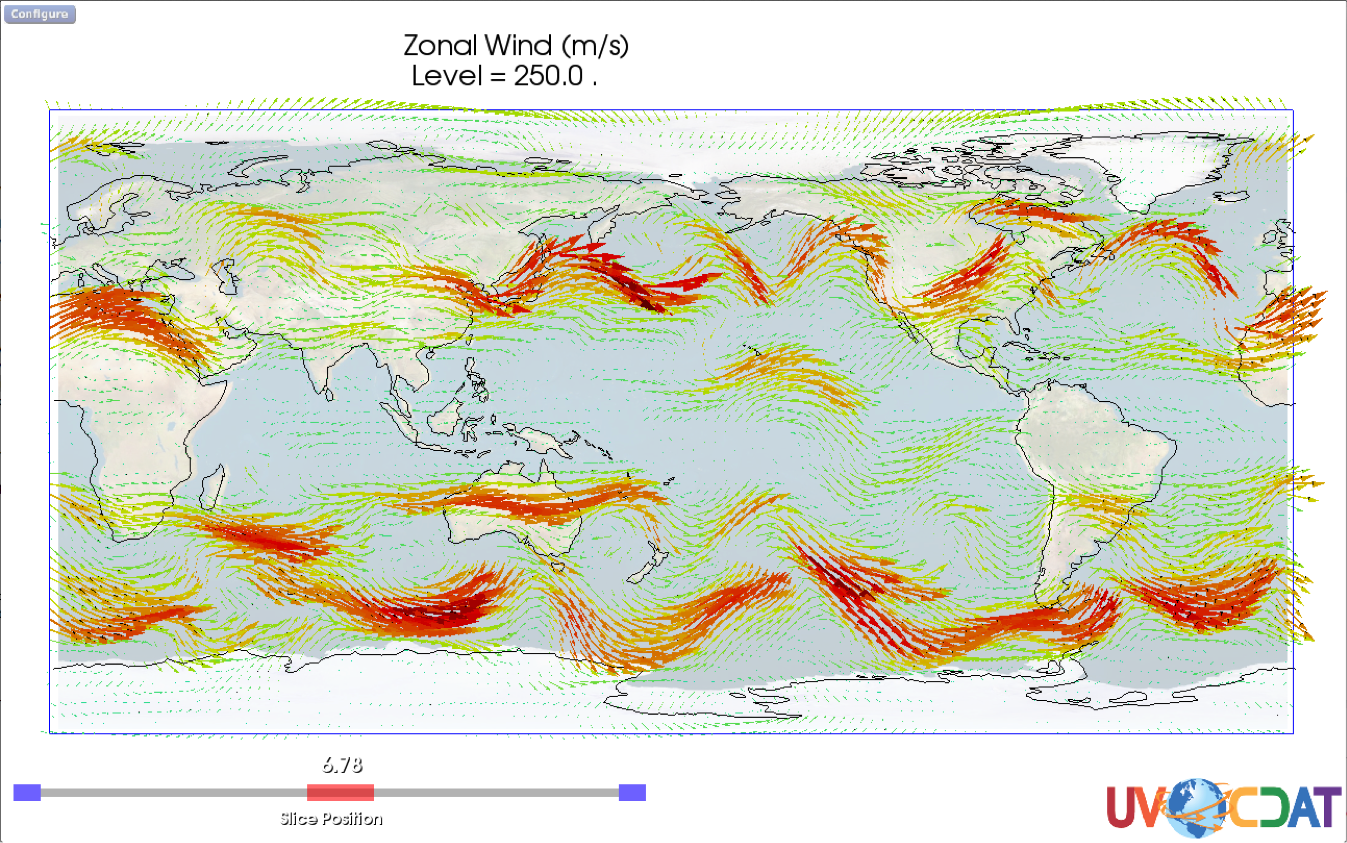

Hi Rex, I’m 99% sure you can do this, I’m a bit busy preparing the release I’m CCing Tom Maxwell that wrote this bit. Hopefully he can get back to you faster than me. C. From: Rex Diego <notifications@github.com> Reply-To: UV-CDAT/uvcdat <reply@reply.github.com> Date: Sunday, March 19, 2017 at 4:53 PM To: UV-CDAT/uvcdat <uvcdat@noreply.github.com> Cc: Subscribed <subscribed@noreply.github.com> Subject: [UV-CDAT/uvcdat] How can dv3d.3d_vector display a full 3d vector plot? (#2160) I want to have a plot like this one [d vec]<https://camo.githubusercontent.com/f8c155e5c25f79e8d613bf80f5cae9f6a44843f6/68747470733a2f2f6364732e6e6363732e6e6173612e676f762f77702d636f6e74656e742f75706c6f6164732f323031332f31312f476c797068566f6c756d652d312e6a706567>in this<https://cds.nccs.nasa.gov/tools-services/3d-model-analysis/> site. but following the tutorial , can only get [lane 3d] <https://camo.githubusercontent.com/323fe2aa9ddf518d1ae55c39d92265b1d582e292/68747470733a2f2f7576636461742e6c6c6e6c2e676f762f696d616765732f76637333642d322e706e67> . It's only a slider which display a plane 3d vectors. And after google all around, I cannot find a tips for the real 3d vector plot, anyone can help me? — You are receiving this because you are subscribed to this thread. Reply to this email directly, view it on GitHub<#2160>, or mute the thread<https://github.com/notifications/unsubscribe-auth/ACpw8bllLDsFvgtZDEKIbhXlxpnbjZXxks5rnb_ngaJpZM4Mh7aU>.

[ThomasMaxwell]

There is a vector volume plotter in dv3d but it does not seem to be exposed currently in the UVCDAT GUI. You should be able to generate these plots using the vcs3D python API.

…

-- Tom From: Charles Doutriaux <notifications@github.com> Reply-To: UV-CDAT/uvcdat <reply@reply.github.com> Date: Monday, March 20, 2017 at 10:03 AM To: UV-CDAT/uvcdat <uvcdat@noreply.github.com> Cc: Subscribed <subscribed@noreply.github.com> Subject: Re: [UV-CDAT/uvcdat] How can dv3d.3d_vector display a full 3d vector plot? (#2160) Hi Rex, I’m 99% sure you can do this, I’m a bit busy preparing the release I’m CCing Tom Maxwell that wrote this bit. Hopefully he can get back to you faster than me. C. From: Rex Diego <notifications@github.com> Reply-To: UV-CDAT/uvcdat <reply@reply.github.com> Date: Sunday, March 19, 2017 at 4:53 PM To: UV-CDAT/uvcdat <uvcdat@noreply.github.com> Cc: Subscribed <subscribed@noreply.github.com> Subject: [UV-CDAT/uvcdat] How can dv3d.3d_vector display a full 3d vector plot? (#2160) I want to have a plot like this one [d vec]<https://camo.githubusercontent.com/f8c155e5c25f79e8d613bf80f5cae9f6a44843f6/68747470733a2f2f6364732e6e6363732e6e6173612e676f762f77702d636f6e74656e742f75706c6f6164732f323031332f31312f476c797068566f6c756d652d312e6a706567>in this<https://cds.nccs.nasa.gov/tools-services/3d-model-analysis/> site. but following the tutorial , can only get [lane 3d] <https://camo.githubusercontent.com/323fe2aa9ddf518d1ae55c39d92265b1d582e292/68747470733a2f2f7576636461742e6c6c6e6c2e676f762f696d616765732f76637333642d322e706e67> . It's only a slider which display a plane 3d vectors. And after google all around, I cannot find a tips for the real 3d vector plot, anyone can help me? — You are receiving this because you are subscribed to this thread. Reply to this email directly, view it on GitHub<#2160>, or mute the thread<https://github.com/notifications/unsubscribe-auth/ACpw8bllLDsFvgtZDEKIbhXlxpnbjZXxks5rnb_ngaJpZM4Mh7aU>. — You are receiving this because you are subscribed to this thread. Reply to this email directly, view it on GitHub<#2160 (comment)>, or mute the thread<https://github.com/notifications/unsubscribe-auth/ABPJkSRePopkcsb_T6HG5nVa_2ASnR0bks5rnocigaJpZM4Mh7aU>.

[Rex-Diego]

@ThomasMaxwell That seems so hard to me, I have no idea what vcs works and where I can get the document about its API. Maybe I will try this in the future after having more knowledge about UVCDAT.

[Rex-Diego]

@doutriaux1 Thanks very much for your reply. But I'm sorry I'm new to UVCDAT, and is not that familiar with it. Mayby later I will try what Tom said.

Thanks again!

[doutriaux1]

Rex, I will try to send you a short python script that does this shortly, but it might be a couple of weeks ☹ If anybody on this list (Tom?) could beat me to this that would be wonderful! C. From: Rex Diego <notifications@github.com> Reply-To: UV-CDAT/uvcdat <reply@reply.github.com> Date: Tuesday, March 21, 2017 at 10:46 PM To: UV-CDAT/uvcdat <uvcdat@noreply.github.com> Cc: "Doutriaux, Charles" <doutriaux1@llnl.gov>, Mention <mention@noreply.github.com> Subject: Re: [UV-CDAT/uvcdat] How can dv3d.3d_vector display a full 3d vector plot? (#2160) @doutriaux1<https://github.com/doutriaux1> Thanks very much for your reply. But I'm sorry I'm new to UVCDAT, and is not that familiar with it. Mayby later I will try what Tom said. Thanks again! — You are receiving this because you were mentioned. Reply to this email directly, view it on GitHub<#2160 (comment)>, or mute the thread<https://github.com/notifications/unsubscribe-auth/ACpw8bm-88GBODCf9F9PqvJOHH-rgz8Vks5roLWogaJpZM4Mh7aU>.

[Rex-Diego]

@doutriaux1 You are so nice,bro!

[ThomasMaxwell]

Rex, Here is a simple example script from the vcs documentation on the UVCDAT web site: https://uvcdat.llnl.gov/documentation/vcs/vcs-8.html#vcs3D_animation def simplevector(): import vcs, cdms2, sys x = vcs.init() f = cdms2.open(sys.prefix+"/sample_data/clt.nc") v = f["v"] u = f["u"] dv3d = vcs.get3d_vector() dv3d.BasemapOpacity = 0.15 x.plot( u, v, dv3d ) x.interact() if __name__ == "__main__": simplevector() From: Charles Doutriaux <notifications@github.com> Reply-To: UV-CDAT/uvcdat <reply@reply.github.com> Date: Wednesday, March 22, 2017 at 12:03 PM To: UV-CDAT/uvcdat <uvcdat@noreply.github.com> Cc: Thomas Maxwell <thomas.maxwell@nasa.gov>, Mention <mention@noreply.github.com> Subject: Re: [UV-CDAT/uvcdat] How can dv3d.3d_vector display a full 3d vector plot? (#2160) Rex, I will try to send you a short python script that does this shortly, but it might be a couple of weeks ☹ If anybody on this list (Tom?) could beat me to this that would be wonderful! C. From: Rex Diego <notifications@github.com> Reply-To: UV-CDAT/uvcdat <reply@reply.github.com> Date: Tuesday, March 21, 2017 at 10:46 PM To: UV-CDAT/uvcdat <uvcdat@noreply.github.com> Cc: "Doutriaux, Charles" <doutriaux1@llnl.gov>, Mention <mention@noreply.github.com> Subject: Re: [UV-CDAT/uvcdat] How can dv3d.3d_vector display a full 3d vector plot? (#2160) @doutriaux1<https://github.com/doutriaux1> Thanks very much for your reply. But I'm sorry I'm new to UVCDAT, and is not that familiar with it. Mayby later I will try what Tom said. Thanks again! — You are receiving this because you were mentioned. Reply to this email directly, view it on GitHub<#2160 (comment)>, or mute the thread<https://github.com/notifications/unsubscribe-auth/ACpw8bm-88GBODCf9F9PqvJOHH-rgz8Vks5roLWogaJpZM4Mh7aU>. — You are receiving this because you were mentioned. Reply to this email directly, view it on GitHub<#2160 (comment)>, or mute the thread<https://github.com/notifications/unsubscribe-auth/ABPJkUqW3klikMUigSmHEjgk34ifCxScks5roUZDgaJpZM4Mh7aU>.
