chunkmirage

Spoof chunked array formats over HTTP with on-the-fly processing.

chunkmirage serves virtual datasets that look, to any HTTP-capable viewer or library (Neuroglancer, BigDataViewer/Fiji, vizarr, napari, webKnossos, zarr-python, dask, tensorstore, ...), like ordinary Zarr v2, Zarr v3, N5 or Neuroglancer precomputed volumes. Nothing exists on disk. Each chunk is computed when it is requested: read from a real source (zarr, N5, precomputed, HDF5, GeoTIFF; local, S3, GCS or HTTP) or generated, pushed through a pipeline of ops, encoded in the format the client asked for, and cached per stage, so changing a parameter downstream never recomputes what comes before it.

▶ Try the demos in your browser, nothing to install. Every chunk on screen is computed in the page by chunkmirage's own Python, from public data, as the viewer asks for it.

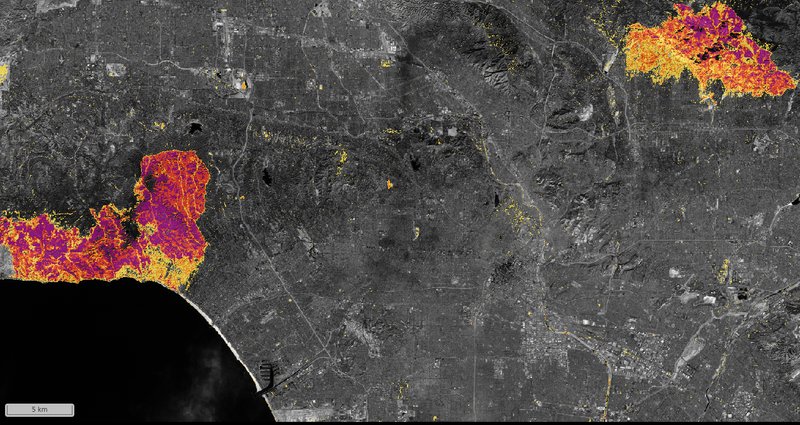

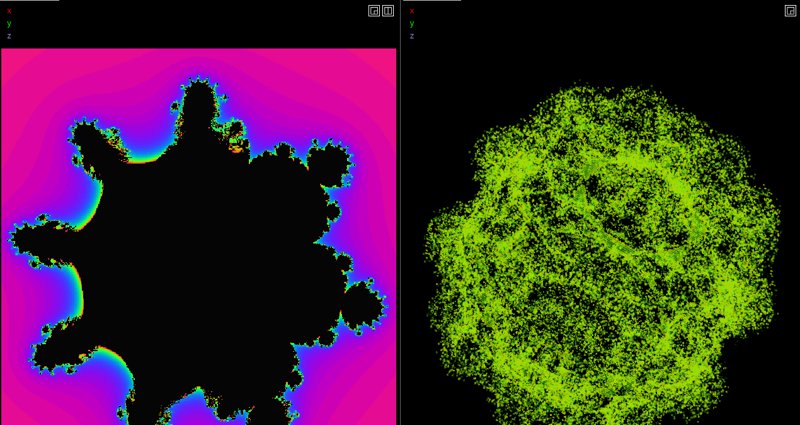

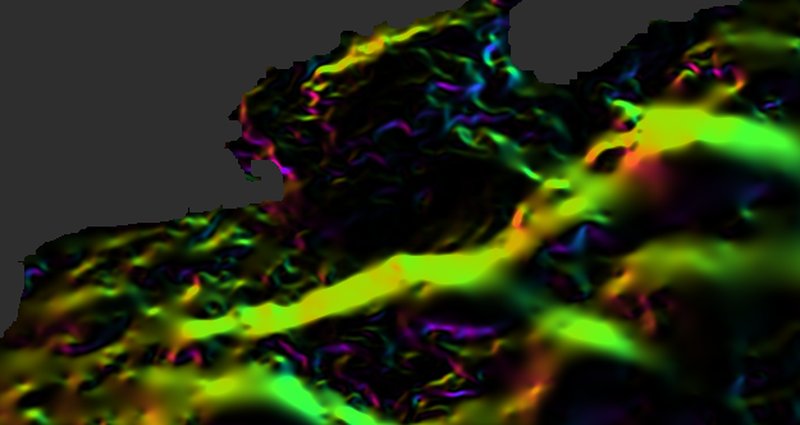

They include burn severity of the Los Angeles fires, the Gulf Stream's fronts and hurricanes' cold wakes, landing slopes at the Moon's south pole, a 3-D fractal, microscope tiles stitched by RANSAC, two fly brains registered on your GPU, organelle contact sites, mRNA spots and nuclei tracked through a colony. Each shows the chunkmirage serve command that serves the same from Python. The demos page lists them all, with the Python examples.

How it works

viewer  --HTTP-->  chunkmirage  --tensorstore/h5py-->  real data (zarr/n5/precomputed/hdf5, file/s3/gcs/http)
                      |
                      +-- pipeline: source -> [op, op, ...] -> encoded chunk
                      +-- per-stage chunk cache keyed by pipeline hash
                      +-- frontends: n5 | zarr (v2) | zarr3 | precomputed, all served at once
                      +-- REST API for live pipeline edits, and plugins for ops, sources and routes

It was inspired by example-virtual-n5 and cellmap-flow, which grew out of it, and makes their trick general: any format, any source, any per-chunk computation, any client.

Quick start

uv sync --extra all --group dev            # or: pip install -e ".[all]"
chunkmirage serve /path/to/data.zarr/em/fibsem-uint8 --op threshold:low=120

With no data at all, a generated 4096³ volume, segmented live:

uv run chunkmirage serve "synthetic://blobs+noise?shape=4096,4096,4096" \
    --op gaussian:sigma=1.5 --op threshold:low=110 \
    --op morphology:operation=open,radius=2 --op label:min_size=200 --python-viewer

Open the printed control page (http://<your-ip>:8000/ui) and drag the threshold slider: only the changed stage recomputes. Or point any viewer at one of these:

viewer source URL	format
n5://http://localhost:8000/<name>/n5	N5
zarr://http://localhost:8000/<name>/zarr	Zarr v2 (+ OME-NGFF 0.4)
zarr3://http://localhost:8000/<name>/zarr3	Zarr v3 (+ OME-NGFF 0.5)
precomputed://http://localhost:8000/<name>/precomputed	Neuroglancer precomputed

Edit the pipeline without restarting:

curl -X PUT localhost:8000/api/datasets/<name> -H 'content-type: application/json' \
  -d '{"source": "/path/to/data.zarr/em/fibsem-uint8", "ops": [{"op": "threshold", "low": 150}]}'

More in getting started, including viewing from another machine.

As a library

from chunkmirage import Pipeline, open_source, create_app
from chunkmirage.ops import Op, Threshold

class MyModel(Op):
    name = "my_model"
    halo = 16          # voxels of context read on every side
    cache = True       # keep this stage's output chunks

    def apply(self, block):
        return run_my_network(block)

pipe = Pipeline(open_source("s3://bucket/data.zarr/em/s0"), ops=[MyModel(), Threshold(low=120)])
app = create_app({"em": pipe})                   # a Starlette ASGI app

Ops, source schemes and HTTP routes from other packages register through entry points (chunkmirage.ops, chunkmirage.sources, chunkmirage.routes), and the app can be mounted inside another one. See pipelines and the REST API.

What it does today

• Sources: zarr v2/v3, N5, precomputed and HDF5 on file, S3, GCS or HTTP; xarray arrays and GeoTIFFs; computed synthetic:// volumes, scene:// resampling through OME-Zarr 0.6 transformations, register:// deformable registration solved on a GPU, stitch:// BigStitcher tiles stitched and fused as read, and warp://, stack:// and flip://.
• Frontends: N5, Zarr v2, Zarr v3 and precomputed, all at once, and meshes made when fetched.
• Ops: pointwise, filters, morphology, connected components, spots, contacts, downsampling, slope and hillshade, with halos handled for you.
• Serving: per-stage cache, live REST edits, a control page, work ordered by what clients ask for and dropped when they stop waiting.
• In the browser: the same ops run in Pyodide, and registration on WebGPU.

Not yet: GPU ops other than registration, an MCP server. See the roadmap.

Documentation

https://janeliascicomp.github.io/chunkmirage/ (built from docs/; uv run mkdocs serve locally). the design page explains the architecture and the choices behind it.

License

BSD 3-Clause, Howard Hughes Medical Institute. Authors: TBD (collaborative project).
