Pectra Batch Operations Smart Contract

Overview

This repository contains the Pectra.sol smart contract, designed to facilitate batch operations for Ethereum validator management tasks introduced in the Pectra (Prague + Electra) network upgrade. It leverages EIP-7702 (Set EOA account code) to allow validator withdrawal Externally Owned Accounts (EOAs) to execute multiple operations (consolidation, credential switching, Execution Layer exits) in a single, atomic transaction.

This overcomes the limitation of the official Ethereum Foundation "system assembly" (sys-asm) contracts, which only permit one operation per transaction and require direct initiation by the withdrawal EOA.

The contract is audited by Quantstamp Audit Report | Audit Certificate

Key Benefits:

• Efficiency: Perform actions across many validators simultaneously.
• Gas Savings: Amortize the base transaction fee over multiple operations.
• Convenience: Simplify workflows for managing validator fleets.

Background: Pectra Upgrade & System Contracts

The Pectra upgrade introduces several key EIPs relevant to this project:

• EIP-7251: Increase the MAX_EFFECTIVE_BALANCE: Increases the max validator balance to 2048 ETH, enabling auto-compounding (with 0x02 credentials) and consolidation.
• EIP-7002: Execution Layer Triggerable Exits: Allows initiating validator exits (full/partial) via transactions from the withdrawal EOA.
• EIP-7702: Set EOA account code for one transaction: Allows an EOA to temporarily execute code as if it were a smart contract, enabling this batching pattern.

The official sys-asm contracts provide the low-level interface for these operations but lack batching capabilities:

• Consolidation/Switching Target: 0x0000BBdDc7CE488642fb579F8B00f3a590007251
• EL Exit Target: 0x00000961Ef480Eb55e80D19ad83579A64c007002 (Important: Always verify these addresses against official Ethereum Foundation sources before mainnet use!)

Features

The Pectra.sol contract provides the following batch functions:

1. batchConsolidation: Consolidate stake from multiple source validators into one target validator.
2. batchSwitch: Switch withdrawal credentials from 0x01 to 0x02 for multiple validators.
3. batchELExit: Trigger full or partial Execution Layer exits for multiple validators.

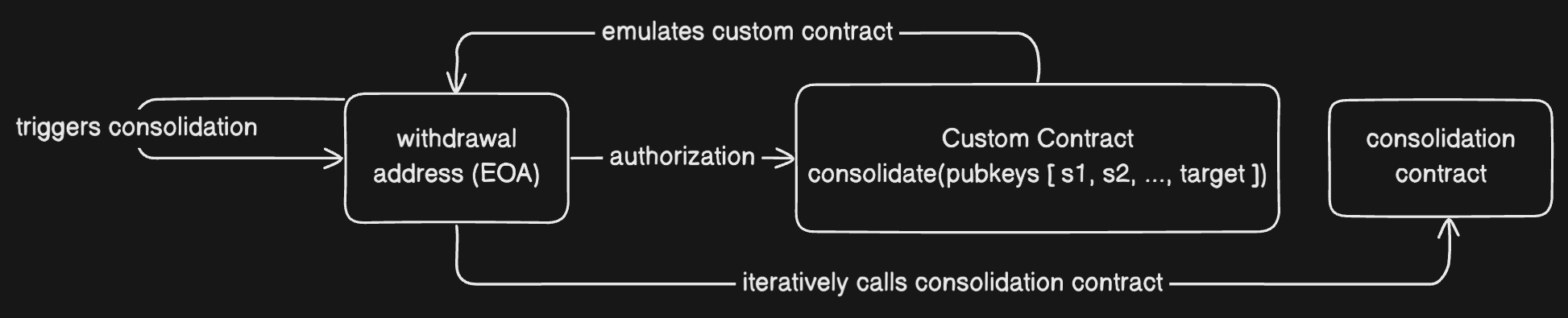

How it Works: Leveraging EIP-7702

The core mechanism relies on EIP-7702:

1. Transaction: The validator's withdrawal EOA signs and sends an EIP-7702 transaction.
2. Code Execution: This transaction specifies the Pectra.sol contract's bytecode and the desired batch function call (e.g., batchConsolidation(...) with validator pubkeys).
3. EOA Emulation: For the duration of this transaction, the withdrawal EOA executes the Pectra.sol code. Inside the contract, msg.sender and address(this) both refer to the withdrawal EOA's address.
4. Authorization: The onlySelf modifier (require(msg.sender == address(this), Unauthorized())) ensures the batch functions can only run in this EIP-7702 context.
5. Iterative Calls: The batch function loops through the provided validator data, making individual, low-level .call()s to the appropriate official sys-asm contract (consolidationTarget or exitTarget).
6. Origin Preservation: Crucially, these low-level calls originate from the withdrawal EOA's address, satisfying the security requirement of the sys-asm contracts.

Contract Capabilities

Token Receiver Interfaces

The contract implements ERC721 and ERC1155 receiver interfaces, allowing it to handle NFT transfers if needed:

• IERC721Receiver - For standard NFT operations
• IERC1155Receiver - For multi-token standard operations

Key Parameters

• Validator Limits:

  • Minimum validators per batch: 1 (MIN_VALIDATORS)
  • Maximum source validators for consolidation: 63 (MAX_SOURCE_VALIDATORS)
  • Maximum validators for switch and exit operations: 200 (MAX_VALIDATORS)

• Validator Data:

  • Public key length: 48 bytes (VALIDATOR_PUBKEY_LENGTH)
  • Maximum withdrawal amount: 2048 ETH in Gwei (MAX_WITHDRAWAL_AMOUNT)

• Fee Management:

  • Minimum fee per validator: 1 wei (MIN_FEE)
  • Dynamic fee retrieval from system contracts (getConsolidationFee() and getExitFee())

Error Handling

The contract has improved error handling with:

• Custom Errors: For validation failures (Unauthorized, InvalidTargetPubkeyLength, etc.)
• Failure Reason Enum: Detailed tracking of operation failures
• Events: Emitted for each failed operation with specific reason codes

Usage

Primary Method: EIP-7702 via CLI

The intended way to use this contract is via EIP-7702 transactions, typically constructed and sent using a helper tool.

Recommended Tool: pectra-cli

A dedicated CLI tool simplifies the process of creating and sending these batch transactions: https://github.com/Luganodes/pectra-cli

Please refer to the pectra-cli repository for installation and usage instructions.

Contract Function Details

1. Batch Consolidation

function batchConsolidation(bytes[] calldata sourcePubkeys, bytes calldata targetPubkey) external payable onlySelf

• Purpose: Consolidate stake from multiple source validators into one target validator
• Parameters:
  • sourcePubkeys: Array of validator public keys to consolidate from
  • targetPubkey: Destination validator public key
• Constraints:
  • 1-63 source validators
  • All public keys must be 48 bytes
  • Sufficient fee per validator

2. Batch Switch

function batchSwitch(bytes[] calldata pubkeys) external payable onlySelf

• Purpose: Switch withdrawal credentials from 0x01 to 0x02 for multiple validators
• Parameters:
  • pubkeys: Array of validator public keys to switch credentials for
• Constraints:
  • 1-200 validators
  • All public keys must be 48 bytes
  • Sufficient fee per validator

3. Batch EL Exit

function batchELExit(ExitData[] calldata data) external payable onlySelf

• Purpose: Trigger full or partial Execution Layer exits for multiple validators
• Parameters:
  • data: Array of ExitData structs containing:
    • pubkey: Validator public key (48 bytes)
    • amount: Amount to withdraw in Gwei (0 for full exit)
    • isFullExit: Safety flag requiring explicit confirmation for full exits
• Constraints:
  • 1-200 validators
  • All public keys must be 48 bytes
  • For partial exits: amount must be <= 2048 ETH in Gwei
  • For full exits: amount must be 0 and isFullExit must be true
  • Sufficient fee per validator

Local Development & Testing (Foundry)

You can compile and test the contract locally using Foundry.

Prerequisites:

• Foundry (Forge & Cast) installed.
• Git

Setup:

git clone <this_repository_url>
cd <repository_directory>
# Install dependencies
forge install openzeppelin/openzeppelin-contracts

Compile:

forge build

Run Tests:

The test suite (test/Pectra.t.sol) uses Foundry cheatcodes (vm.prank, vm.etch, vm.expectEmit, etc.) to simulate the EIP-7702 execution environment and test various scenarios, including edge cases and failures.

forge test

Deployment (Optional - Not Primary Usage):

While the main usage pattern is ephemeral execution via EIP-7702, you can deploy the contract persistently using Foundry if needed (e.g., for reference or specific testing scenarios).

# Ensure RPC_URL and PRIVATE_KEY are set in your environment or use flags
# Example: export RPC_URL=... ; export PRIVATE_KEY=...
forge create src/Pectra.sol:Pectra --rpc-url $RPC_URL --private-key $PRIVATE_KEY

Note: Remember that calling functions on a deployed Pectra contract directly from a standard EOA will fail the onlySelf modifier check. Interaction still requires an EIP-7702 transaction where the withdrawal EOA emulates this contract's code.

Security Considerations

Audit Report

• EIP-7702 Authorization: The primary security relies on the EIP-7702 transaction being signed by the legitimate withdrawal EOA's private key.
• onlySelf Modifier: Prevents unauthorized calls to the batch functions outside the EIP-7702 context.
• Input Validation: Rigorous checks on input data lengths and formats, with improved error reporting.
• Explicit Exit Confirmation: Requires explicit confirmation for full validator exits via the isFullExit flag.
• Immutable Targets: The official sys-asm contract addresses are hardcoded and immutable, preventing redirection.
• Stateless: The batching contract itself holds no state related to the validators.
• Failure Handling: Individual operation failures within a batch emit events and allow the rest of the batch to continue (the transaction doesn't revert unless there's a batch-level configuration error).
