Machine Learning project for predicting insertion/deletion spread

Note: Migrated site from heroku to render

Overview

This project uses machine learning to predict insertion/deletion spread of a given sequence from data provided by the Wellcome Sanger Institute. The deployed web application can be viewed here. Application may take awhile to load as it is using a free dyno on heroku which sleeps after 30 minutes of inactivity.

Table of Contents

1. Running Webapp Locally
2. Installation
3. Deployment
4. Running Keras Models Locally
5. Built with
6. Description of files

Running Webapp Locally

• Clone this repo
• Install requirements
• Run app.py
• Check http://localhost:5000

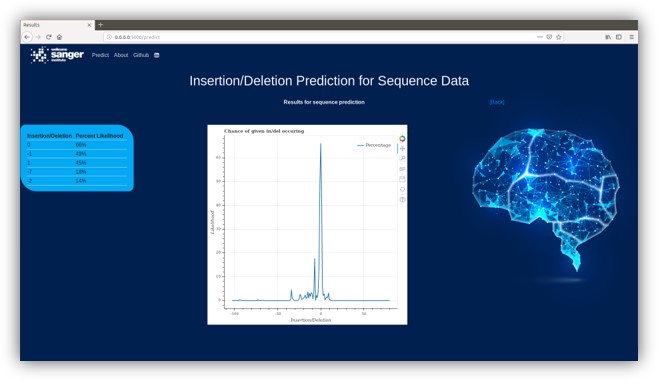

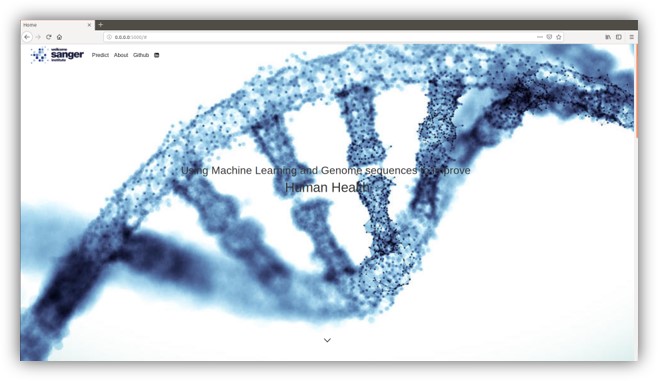

Screenshots:

Installation

Clone repo

$ git https://github.com/addenergyx/machine-learning.git

Install Webapp dependencies

$ pip install -r requirements.txt

Run application

$ python app.py

View application

Open http://localhost:5000

Deployment

The model was deployed to production using Heroku.

Running Keras Models Locally

Need miseq data to run the models locally!!!

Data pre-processing script dependencies

$ sudo apt-get install make
$ sudo cpan App::cpanminus
$ sudo cpanm Text::CSV::Slurp Try::Tiny Log::Log4perl Parallel::ForkManager Text::CSV::Separator Text::CSV_XS Getopt::Long

Vinna rna install

$ sudo apt-add-repository ppa:j-4/vienna-rna
$ sudo apt-get update
$ sudo apt-get install vienna-rna

Advise using anaconda distribution because it comes with spyder and jupyter notebook and allows easy configuration of different environments. Jupyter notebok only used for visualization of data in a browser.

Clone repo

$ git https://github.com/addenergyx/machine-learning.git

Regression Neural Network

Ensure the right data is pointing to the network in the config file .nn_config.yml or by using flags

$ vim ~/machine-learninng/.nn_config.yml

Run Neural Network

If you are using a large dataset that cannot fit into memory split the data into separate csv files in one directory and point the --batch flag to the directory

$ python ~/machine-learning/neural_network.py

Classification Neural Network

Ensure the right data is pointing to the network in the config file .cn_config.yml or by using flags

vim ~/machine-learninng/.cn_config.yml

Run Neural Network

If you are using a large dataset that cannot be encoded into memory, firstly encode the dataset and save that csv, then point the --batch flag to that file. This will read the file and add one line into memory and the model at a time using the python generator.

python ~/machine-learning/classification_neural_network.py

Built with

• Keras - The main machine learning framework used. High level API for Neural Networks using Tensorflow in the backend.
• Bootstrap - Free front-end framework for faster and easier web development.
• Scikit-learn - Used for data encoding and cross validation.
• Heroku - Cloud platform used to deploy the model.
• Flask - Python web framework.

Description of files

Python scripts files:

Filename	Description
classification_neural_network.py	Classification approach to use case, model used in the WebApp.
neural_network.py	Regression approach to use case.
.cn_config.yml	Configuration file for the classification model.
encode_data.py	Parse large dataset and produce encoded binary data for the classification model.

Webapp files:

Filename	Description
requirements.txt	All dependencies to run webapp on heroku.
app.py	Flask application.
Procfile	Specifies the commands that are executed by the app on startup.
tests/test.py	Unit testing on web application.
templates/home.html	Web app home page.
templates/results.html	Web app results page.

Other files:

Filename	Description
README.md	Markdown file description of the project.
data_preprocessing.pl	Feature extraction from miseq data.
classification_data_preprocessing.pl	Feature extraction from miseq data.
merge_csv.pl	Merges several data files into one.
static/css/styles.css	Styling for webapp.

TODO

• Tensorflow 2.0
• Google Charts
• Docker
• Figure filters
