SlopOS T-Deck

Status: Beta testing — several users have flashed successfully. See Known Issues below.

Standalone off-grid LoRa mesh messaging firmware for the LilyGo T-Deck (ESP32-S3 + SX1262 + ST7789 240×320 TFT touchscreen + physical QWERTY keyboard).

Built on the MeshCore mesh networking protocol — fully interoperable with existing MeshCore repeaters, room servers, and companion radios.

Status

Feature	Status
Dark Discord-like UI (LVGL v9.3.0)	✅ Complete
Home screen (4×3 icon grid + status bars)	✅ Complete
Chat screen (channel list, message bubbles, text input)	✅ Complete
Packets / Contacts / Repeaters screens	✅ Complete
Signal / Network diagnostics screens	✅ Complete
Map (offline tiles + PNG/JPEG decode)	✅ Complete
Settings / Terminal / Trace screens	✅ Complete
Finder / Advertise / Onboarding wizard screens	✅ Complete
MeshCore protocol (radio, routing, encryption)	✅ Integrated
T-Deck HAL (display, battery, LoRa, pins)	✅ Complete
Unit tests (13 modules)	✅ 276 tests
Touch input driver (GT911)	✅ Complete
Keyboard input driver (I2C, ESP32-C3 MCU)	✅ Complete
Full mesh messaging (send/receive queue + UI integration)	✅ Complete
GPS NMEA parser	✅ Complete
SD card support (SPI mount, read/write)	✅ Complete
Offline map renderer (tile math + LVGL canvas grid)	✅ Complete

Test Suite

# Run all 276 tests on native platform (no hardware needed)
pio test -e native_test -v

# Run a specific test module
pio test -e native_test -f test_battery -v

Test Module	Tests	What's Covered
test_touch	22	GT911 coordinate mapping, multitouch parsing, press→release lifecycle
test_keyboard	20	Matrix scan, keymap, debounce, ghost detection, LVGL mapping
test_battery	16	mV→% conversion, clamping, monotonicity, edge cases, ADC math
test_sdcard	15	SPI init, mount, read/write, directory listing, edge cases
test_mesh_messaging	15	Message queue, send/receive, channel ops, contact export
test_map	14	Tile math (lat/lon→tile), zoom levels, bounding box
test_mesh_wrapper	13	API signatures, return value ranges, unread count init
test_navigation	12	Forward/back with history stack, deep nav chains, all pairs
test_gps	12	NMEA parsing, coordinate conversion, fix detection
test_trackball	9	Direction debounce, deadtime, click detection, idle calibration
test_pins	9	GPIO ranges, SPI/I2C bus conflicts, duplicate detection, LoRa params
test_theme	7	Color darkness, vibrancy, distinctness, readability hierarchy
test_build	7	All headers compile together, cross-module API consistency

Full test documentation: test/README.md

Hardware

Component	Detail
MCU	ESP32-S3, 240 MHz, 16 MB Flash, 8 MB PSRAM
Display	ST7789 240×320 TFT (landscape via rotation)
Touch	GT911 capacitive (I2C)
Keyboard	Physical QWERTY matrix
LoRa	SX1262 (SPI)
GPS	Serial1 (optional)
SD Card	SPI (shared bus)

Architecture

SlopOS-tdeck/
├── firmware/               ← Pre-built merged binaries (flash at 0x0)
├── lib/meshcore/           ← Git submodule: MeshCore protocol (routing, radio, encryption)
├── src/
│   ├── main.cpp            ← Boot sequence (board → display → mesh → UI)
│   ├── lv_conf.h           ← LVGL v9 config (16-bit, partial render)
│   ├── hal/
│   │   ├── tdeck_pins.h    ← Complete T-Deck pinout + version string
│   │   ├── tdeck_board.h   ← TDeckBoard :: mesh::MainBoard
│   │   ├── display.cpp/h   ← LovyanGFX ST7789 + LVGL driver
│   │   ├── trackball.cpp/h ← 5-direction trackball (debounce, event queue)
│   │   ├── battery.cpp/h   ← ADC battery (mV + %)
│   │   ├── touch.cpp/h     ← GT911 touch controller (I2C)
│   │   ├── keyboard.cpp/h  ← I2C keyboard (ESP32-C3 MCU)
│   │   ├── gps.cpp/h       ← NMEA GPS parser (Serial1)
│   │   ├── sdcard.cpp/h    ← microSD card (SPI, shared bus)
│   │   └── prefs.cpp/h     ← NVS preferences (radio config, identity)
│   ├── mesh/
│   │   ├── mesh_wrapper.cpp/h  ← SX1262 radio init, RTC, mesh API
│   │   └── slop_mesh.h     ← SlopMesh : mesh::Mesh subclass
│   ├── app/
│   │   └── map_renderer.cpp/h  ← Offline map tile renderer (PNG/JPEG, PSRAM canvas)
│   ├── fonts/
│   │   └── emoji_font_setup.cpp/h  ← Emoji font fallback
│   └── ui/
│       ├── theme.h         ← Discord-inspired dark palette
│       ├── responsive.h    ← Adaptive layout helpers (bars, grids, dialogs)
│       ├── home_screen.cpp/h   ← 4×3 icon grid + top/bottom bars
│       ├── chat_screen.cpp/h   ← Discord-like chat (channels, bubbles, input)
│       ├── screens.cpp/h   ← Heard, Map, Settings, Terminals, etc.
│       ├── onboarding_screen.cpp/h  ← First-boot setup wizard
│       ├── navigation.cpp/h    ← Screen routing with animations
│       └── ui.cpp/h        ← Splash → Home transition
├── boards/t-deck.json      ← PlatformIO board definition
├── platformio.ini          ← Build config (ESP32-S3 + LVGL + MeshCore)
├── test/                   ← Unit test directory (13 modules, 171 tests)

Build & Flash

Prerequisites

• PlatformIO (VS Code extension or CLI)
• LilyGo T-Deck with USB-C cable

Windows Setup

Install everything from a PowerShell terminal:

# 1. Git
winget install Git.Git

# 2. Python 3.12
winget install Python.Python.3.12

# 3. PlatformIO CLI
pip install platformio

# 4. CP210x USB driver (for T-Deck USB-to-UART)
# Download from: https://www.silabs.com/developers/usb-to-uart-bridge-vcp-drivers
# Unzip → right-click silabser.inf → Install
#
# Verify: Device Manager → Ports (COM & LPT) → "Silicon Labs CP210x USB to UART Bridge"

Restart your terminal after installing Python, then verify:

git --version
python --version
pio --version

Linux Setup

# Ubuntu/Debian
sudo apt install git python3 python3-pip
pip install platformio

# Arch
sudo pacman -S git python python-pip
pip install platformio

No USB driver needed on Linux — the CP210x kernel module ships with the kernel.

macOS Setup

# Homebrew
brew install git python platformio

No USB driver needed on macOS — the CP210x driver is built into the OS.

Clone with submodule

git clone --recurse-submodules https://github.com/hermes-gadget/SlopOS-tdeck.git
cd SlopOS-tdeck

If lib/meshcore/ is empty after clone, run:

git submodule update --init --recursive

Build

pio run -e SlopOS_TDeck

First build downloads the ESP32-S3 toolchain (~800 MB). Subsequent builds are fast.

Flash

Put the T-Deck in download mode: hold the trackball button while plugging in USB (or hold BOOT + tap RESET). The screen stays black — that's correct.

pio run -e SlopOS_TDeck -t upload

Monitor

pio device monitor -b 115200

Sanity Check

After cloning, these files must exist or the build will fail:

File	Purpose
boards/t-deck.json	Board definition (16 MB flash, QIO, ESP32-S3)
lib/meshcore/src/Mesh.h	MeshCore submodule (must not be empty)
platformio.ini	Build configuration

Pre-built Firmware

Pre-built merged binaries are in firmware/. Flash directly with esptool — no PlatformIO needed:

pip install esptool
esptool.py --chip esp32s3 --port COM21 --baud 921600 \
  --before default_reset --after hard_reset write_flash \
  --flash_mode qio --flash_freq 80m --flash_size 16MB \
  0x0 firmware/slopos-tdeck-merged.bin

See firmware/README.md for details.

Screenshots

All screens from the SlopOS T-Deck UI, captured from a live device running the production firmware build.

Screen	Screenshot	Description
Home		4×3 icon grid launcher with CHATS, CONTACTS, REPEATERS, FINDER, PACKETS, MAP, ADVERTISE, SETTINGS, TRACE, TERMINAL, SETUP, SIGNAL. Top bar shows current channel, bottom bar shows device name + battery.
Onboarding		First-boot setup wizard (3 steps) — configure node name, radio frequency, and spreading factor before the device is usable.
Chat		Direct message view showing message bubbles between the user and a contact. Includes text input, sent/received messages with timestamps, and navigation to channel chats.
Contacts		Lists companions (ADV_TYPE_CHAT) and room servers (ADV_TYPE_ROOM) that have been heard on the mesh. Tap a contact to send a direct message.
Repeaters		Lists infrastructure relay nodes (ADV_TYPE_REPEATER) heard on the mesh. Repeaters extend network range and are filtered separately from contacts.
Finder		Ping Nearby interface — press the button to discover nodes on the local mesh. Shows ping results and known repeaters.
Heard / Packets		Packet log showing all received mesh packets with timestamp, source, RSSI, SNR, and type columns. Useful for network diagnostics.

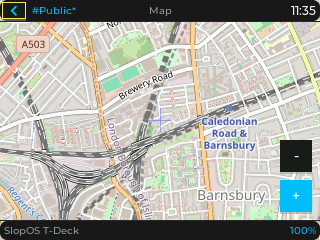

Map		Offline tile map renderer showing node locations (from GPS) with pan and zoom. Renders PNG/JPEG tiles from SD card or PSRAM cache.
Advertise		Send an advert (presence beacon) to the mesh so other nodes discover you. Shows advert type, cooldown, and last advertised timestamp.

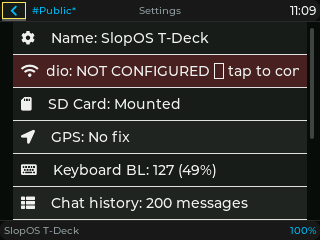

Settings		Device configuration: node name, radio params (frequency, SF, power, gain), display timeout, backlight, GPS toggle, and factory reset.
Trace		Real-time routing trace showing packet paths through the mesh — source → hops → destination with per-hop RSSI/SNR.
Terminal		Serial-style command interface for direct MeshCore CLI commands (e.g. info, status, nodes, channels).
Signal & SNR		Signal diagnostics screen showing RSSI, SNR, noise floor, and packet success rate for the current radio configuration.
Radio Setup		Advanced radio configuration: frequency band, spreading factor, coding rate, TX power, and RX gain boost.

License

GPL-3.0-or-later

This project is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

Dependencies remain under their original licenses (MIT, FreeBSD, LGPL-2.1, zlib/libpng, BSD-3-Clause) — see Open Source Acknowledgments below for the full audit.

Open Source Acknowledgments

This project builds on and incorporates open source software from the following projects:

Project	License	Usage in SlopOS
MeshCore	MIT	Mesh networking protocol (submodule at lib/meshcore/). Also: RTC clock (ESP32RTCClock), auto-off display timer, deep sleep patterns, and NodePrefs struct — all adapted from MeshCore's companion radio firmware.
LilyGo T-Deck Keyboard_ESP32C3	MIT	I2C keyboard protocol reference — our keyboard.cpp driver is based on the command set and keymap from this firmware (© 2023 Shenzhen Xin Yuan Electronic Technology Co., Ltd)
LVGL	MIT	Embedded GUI framework (v9.3.0)
LovyanGFX	FreeBSD	Display driver for ST7789 TFT
RadioLib	MIT	SX1262 LoRa radio driver
Adafruit BusIO	MIT	I2C/SPI bus abstraction for sensor/display drivers
Arduino Crypto	MIT	AES/SHA for MeshCore packet encryption
Google Test	BSD-3-Clause	Unit testing framework
ed25519	zlib/libpng	Embedded Ed25519 crypto (Orson Peters) — bundled in MeshCore at lib/meshcore/lib/ed25519/
ESP32 Arduino Core	LGPL-2.1	ESP32-S3 hardware abstraction and Arduino framework (LGPL→GPLv2+ bridge compatible)
PlatformIO	Apache 2.0	Build system (not linked into firmware)
