🎨 collab-drawing-board

An interactive drawing application that allows users to draw, edit, and manage shapes on a canvas, supporting both individual work and real-time collaboration with multiple users.

---

🚀 Features

• Easy-to-use drawing tools such as rectangles, text etc...
• Easily manipulate shapes with capabilities to move, resize, and delete.
• Efficient local storage updates with debouncing to reduce writes.
• Real-time multi-user collaboration through dynamically generated shareable links.
• Real-time synchronization by using WebSocket backend managing sessions.
• When all participants leave a session, its data is removed.
• Returning users can rejoin sessions and resume their work seamlessly.

---

🛠 Technology Stack

• Frontend: Next.js, Tailwind CSS, TypeScript
• Backend: Node.js, WebSocket (ws), TypeScript
• Monorepo Management: Turborepo
• Package Manager: pnpm

---

📦 Setup and Run

1. Clone the repository:

   git clone https://github.com/illuricharles/collab-drawing-board.git

2. Navigate into the project directory and install dependencies/build packages:

   cd collab-drawing-board
   pnpm install
   pnpm build

3. Configure environment variables for both frontend and backend:

   • Frontend (/apps/web):

     cd apps/web
     cp .env.example .env


     Edit .env and set:

     LOCAL_STORAGE_DRAWING_KEY='my-drawings'
     NEXT_PUBLIC_WS_BACKEND="http://localhost:8080"


   • Backend (/apps/realtime-draw-server):

     cd ../realtime-draw-server
     cp .env.example .env

     Edit .env and set:

     ALLOWED_ORIGIN="http://localhost:3001"


4. Start the development servers in separate terminals:

   • Frontend:

     cd ../../apps/web
     pnpm dev

   • Backend:

     cd ../realtime-draw-server
     pnpm dev

5. Open http://localhost:3001 in your browser to use the application.

---

⚙️ How to Use

• Select your preferred drawing tool.
• Draw shapes on the canvas, then select them to modify or remove as needed.
• Enable live collaboration through the menu to generate a unique sharable link.
• Share the link with others to join the session and collaborate in real time.
• The backend maintains all active session data in memory and clears it once no participants remain.
• Rejoining a session with a valid link restores the latest drawing state instantly.

---

📷 Demo & Screenshots

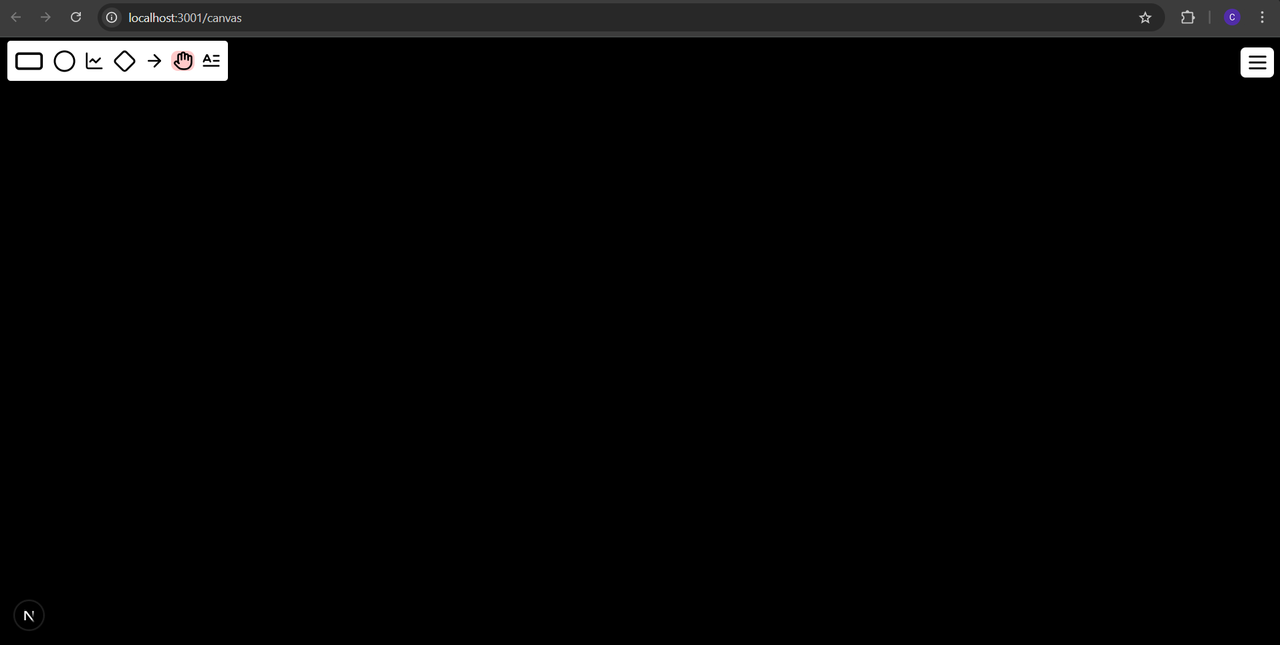

Main drawing interface showing the toolbar and canvas.

Drawing shapes and editing them on the canvas.

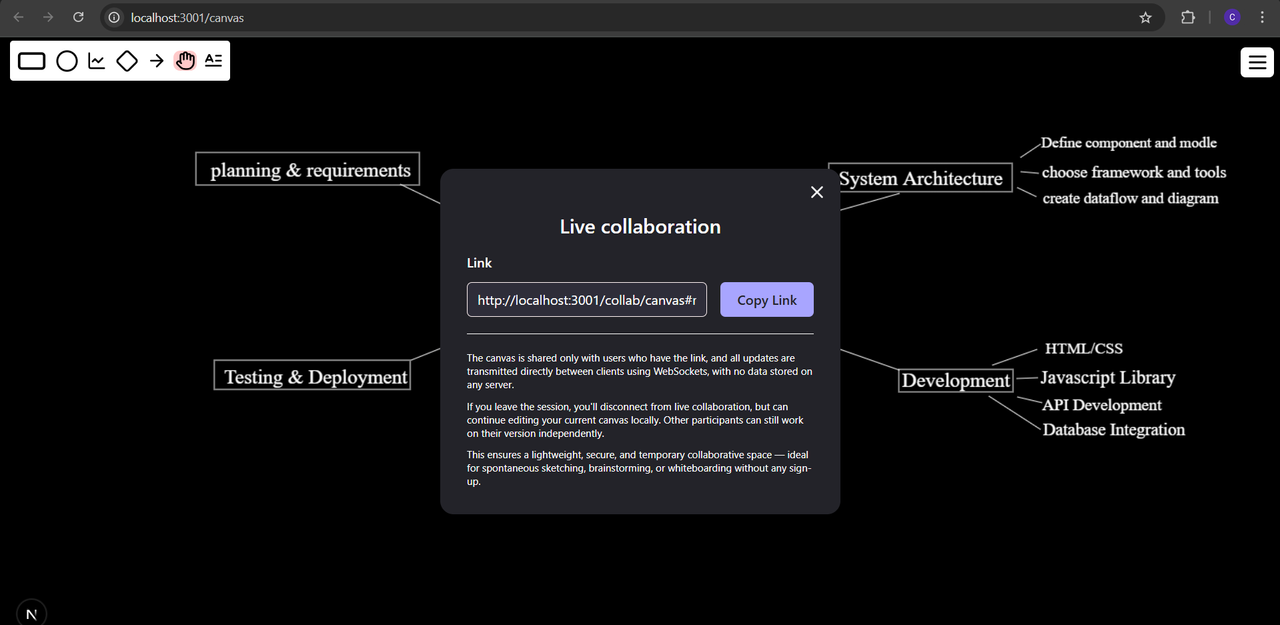

Creating sharable link for collaboration.

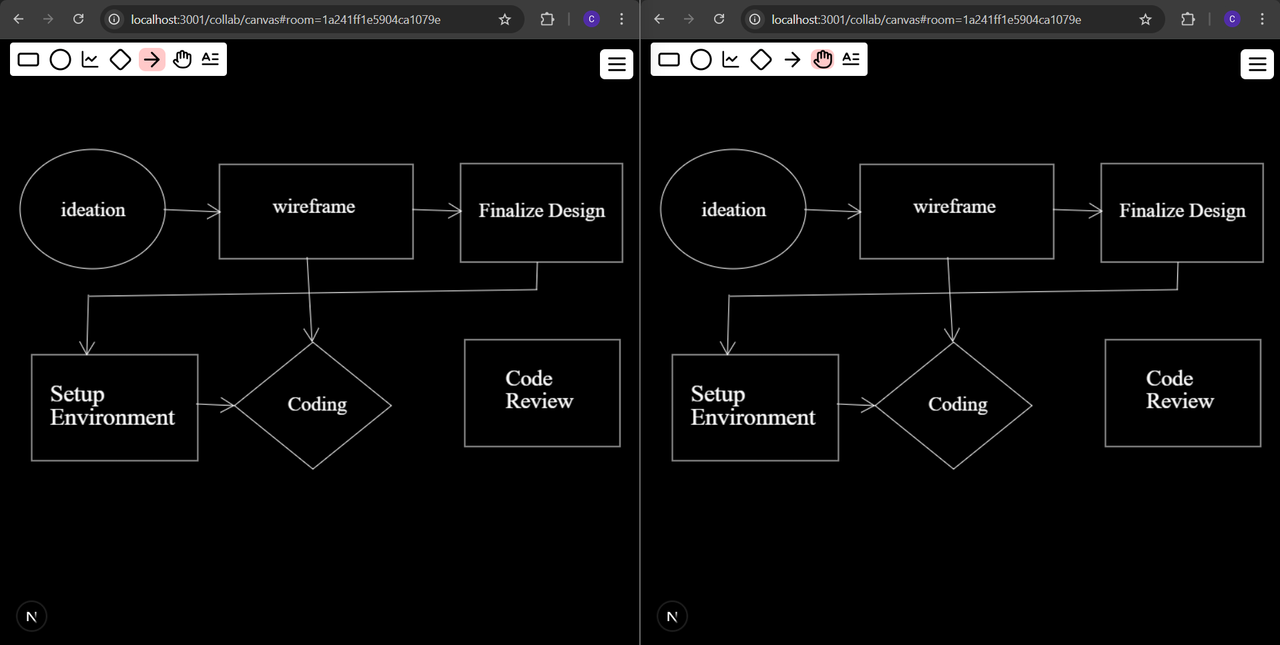

Real-time collaboration in action with multiple users.

📄 License

This project is licensed under the MIT License.
