Resurrection Cup Overlay Bundle

Resurrection Cup Overlay + Showcase + Winner + Mappool

Prerequiste

• gosumemory
• Resurrection Cup Controller

Install instruction

• Download the latest release
• Extract the contents of the zip file and put them in a folder called ResCupOverlay
• Copy the ResCupOverlay folder to <your_gosumemory_path>/static/
• RUN RESURRECTION CUP CONTROLLER FIRST
• Edit config.json
• Run osu!, gosumemory and OBS
• In OBS, add a Browser Source with using the URL:
  • http://127.0.0.1:24050/ResCupOverlay for Main Overlay
  • http://127.0.0.1:24050/ResCupOverlay/#/showcase for Showcase Overlay
  • http://127.0.0.1:24050/ResCupOverlay/#/winner for Winner Overlay
  • http://127.0.0.1:24050/ResCupOverlay/#/mappool for Mappool Overlay
• The source dimension should be 1920x1080

Edit config (team icon, config.json)

• Open ResCupOverlay/config.json
• Edit the current round name
• Edit bestOf, nBans (this one is for the Controller)
• Edit the current match teams by the following json format:

{
	...,
 	"team": {
		"left": "",
		"right": "",
	},
	...
}

• Edit the team list by the following json format:

{
	...,
	"teamList": [
		{
			"teamName": "",				// String
			"teamSeeding": 0,			// Number
			"teamIconURL": "",			// String - The team icon file name in /team
			"playerList": {
				"playerName": [ "", "", ... ],	// String
				"playerID": [ 0, 0, ...]		// Number, order should match with playerName above
			}
		},
		{ ... }
	],
	...
}

• Edit the mappool by the following json format:

{
	...,
	"pool": {
		"NM": [
			{
				"artist": "",
				"title": "",
				"creator": "",			// Mapper
				"coverURL": "",			// https://assets.ppy.sh/beatmaps/<beatmapset-id>/covers/[email protected]
				"diff":	"",				// Difficulty name
				"id": 0					// Number - BEATMAP ID not BEATMAPSET ID
			},
			{ ... }
		],
		"HD": [ ... ],
		"HR": [ ... ],
		"DT": [ ... ],
		"FM": [ ... ],
		"TB": [ ... ]
	}
}

• Add team icon in <your_gosumemory_path>/static/ResCupOverlay/team

Update the Overlay

• Delete everything in <your_gosumemory_path>/static/ResCupOverlay
• Follow the Install instructions again

Developing

• Clone the repository by git clone https://github.com/FukutoTojido/Resurrection-Cup-Overlay-Bundle.git
• Install all NPM packages by npm i
• Start the overlay with npm run dev
• To build the overlay, simply run npm run build, a dist folder will be created with all the assets needed for gosumemory.

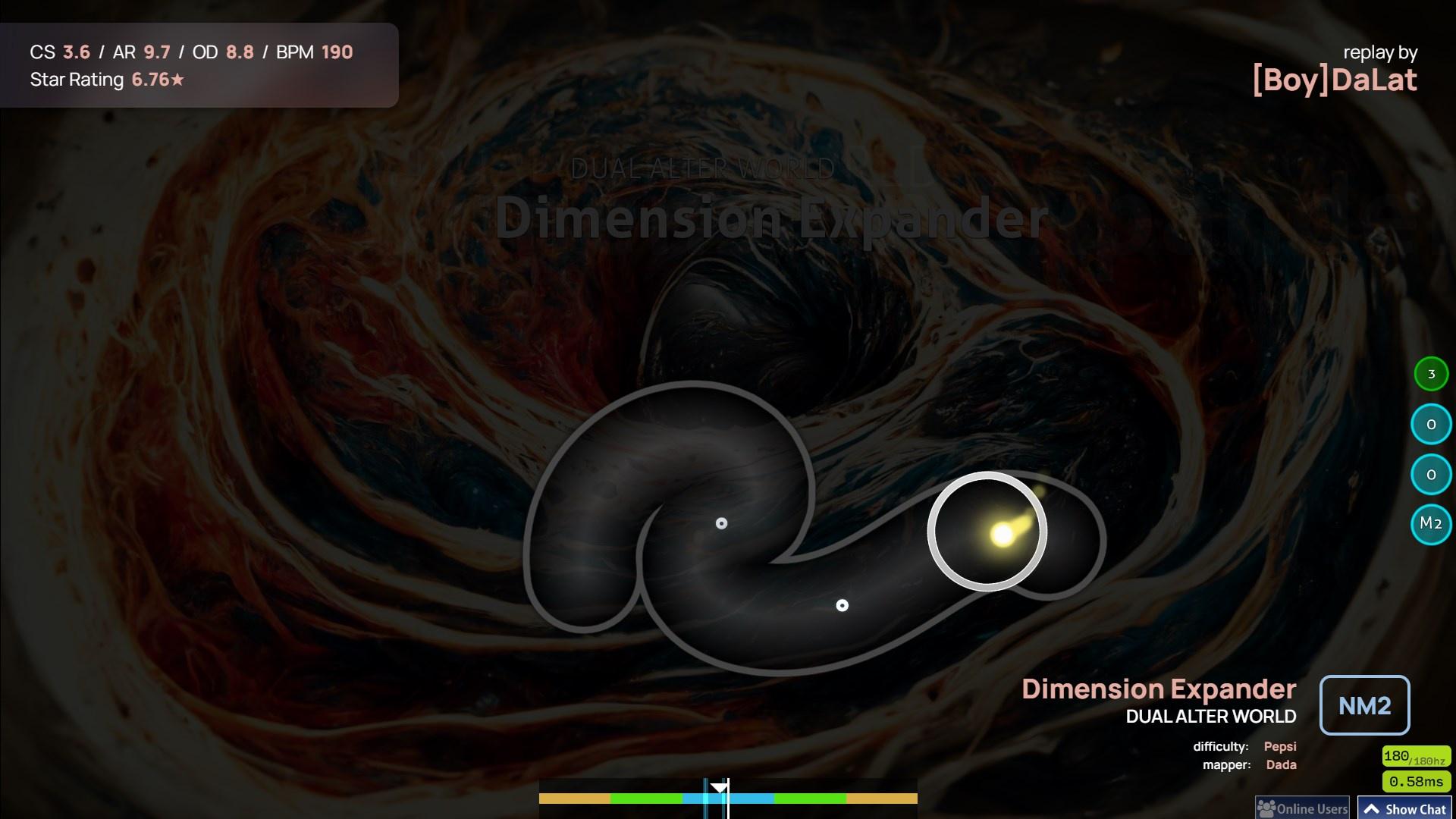

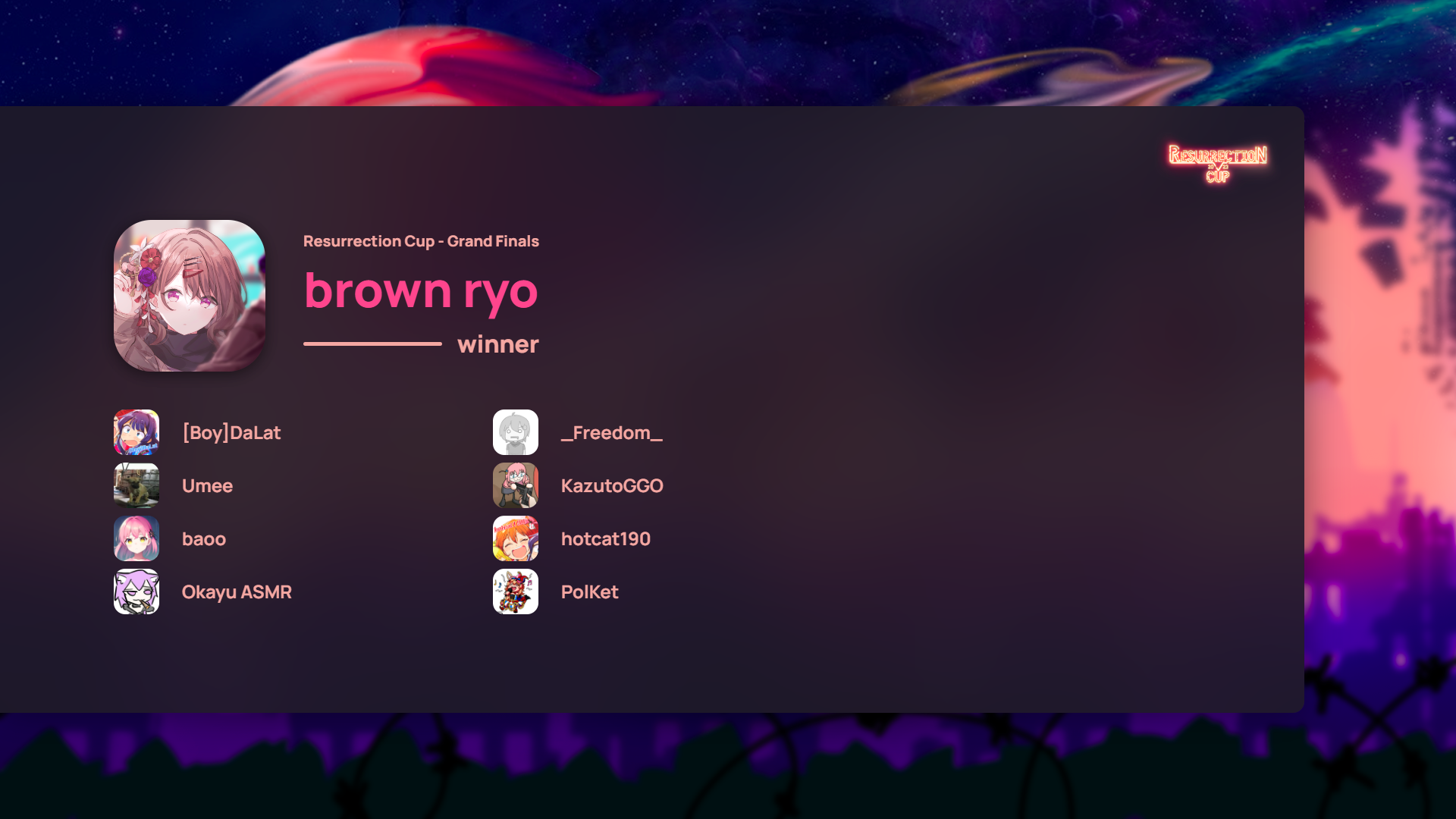

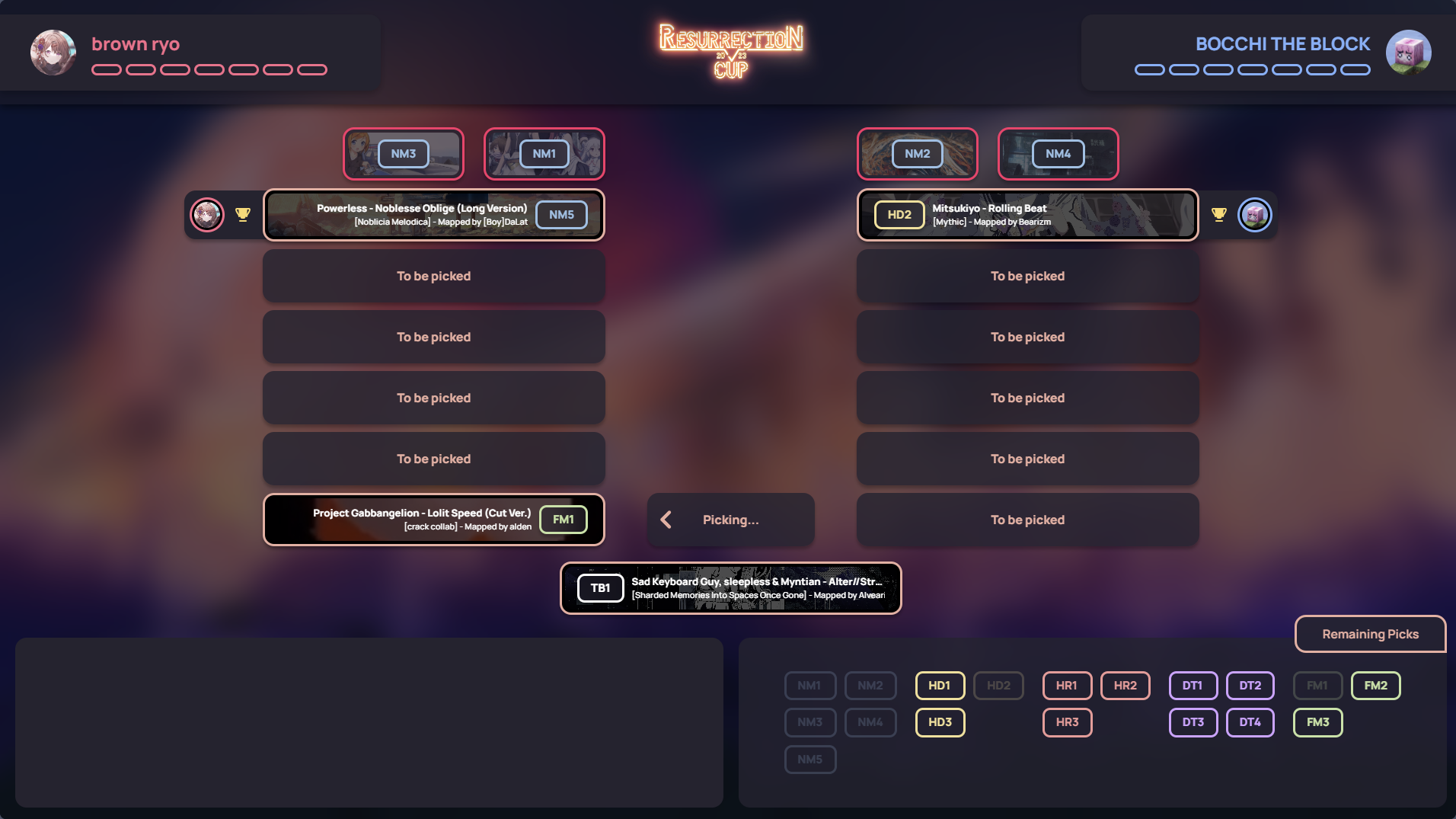

Screenshot
