A Linux GUI for SteelSeries Arctis headsets — device settings, 4-channel audio mixer (Game / Chat / Media / Output), automatic media routing, and a full Sonar EQ system powered by PipeWire filter-chain.
Supported Arctis headsets on Linux: Arctis Nova Pro Wireless, Arctis Nova Pro Wired, Arctis Nova Pro Omni, Arctis Nova Elite, Arctis Nova 7 (Gen 1 & Gen 2), Arctis Nova 7P, Arctis Nova 5 / 5X, Arctis Nova 3 / 3P / 3X, Arctis 7, Arctis 7+, Arctis 9 Wireless, Arctis Pro Wireless, Arctis 1 / 7X / 7P Wireless, and Arctis GameBuds / GameBuds X — full list with Product IDs in Supported devices.
🎚️ ASM Presets — browse and share community EQ presets! 💬 Join the Discord — chat, share presets and get help from the community! 📝 Share your experience in Discussions — feedback helps improve compatibility for everyone!
- Arctis Sound Manager

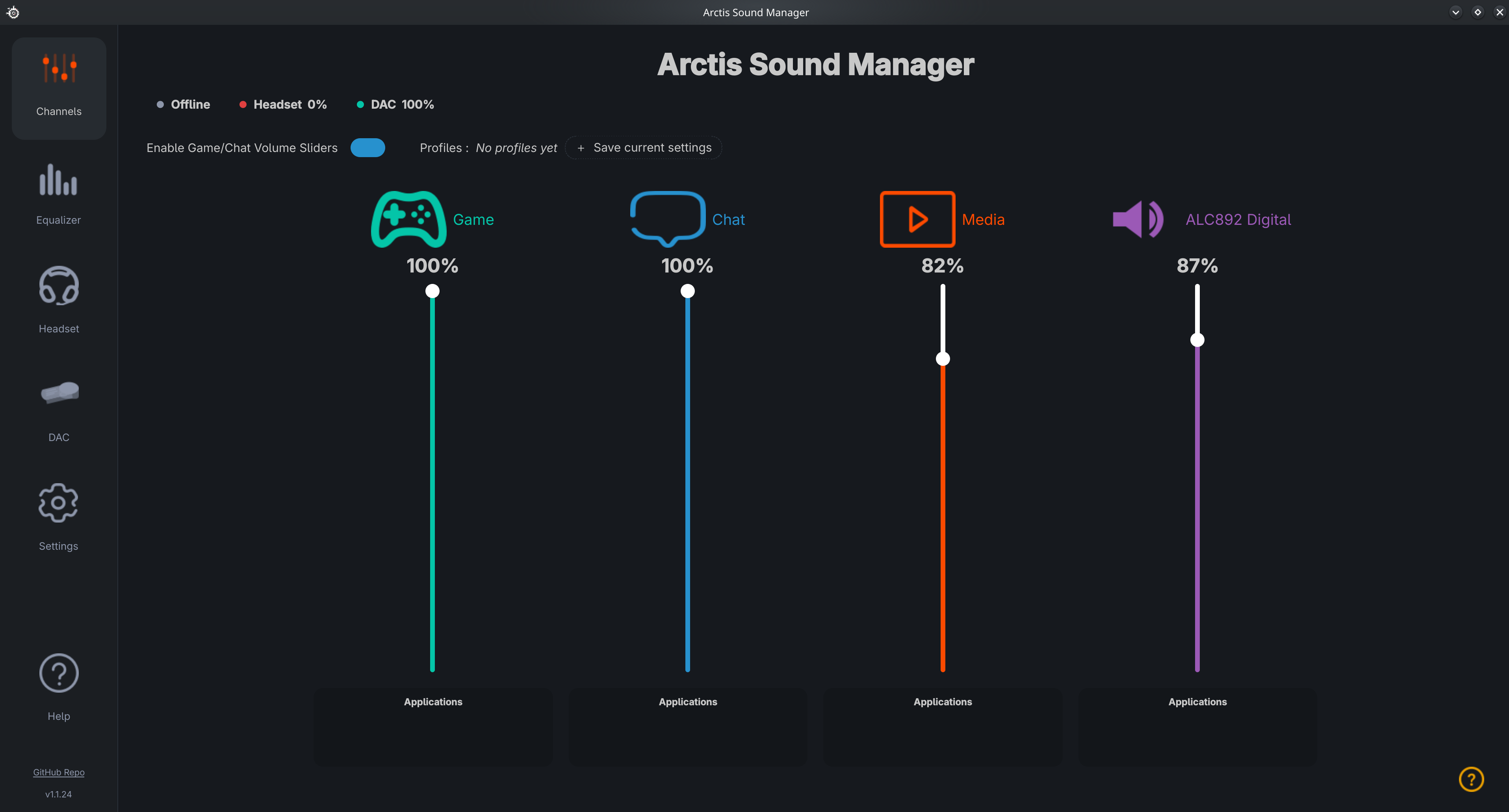

- 4-channel mixer — separate Game, Chat, Media and Output virtual sinks
- Automatic media routing — browsers and video players (Firefox, VLC, mpv…) are automatically routed to the Media sink
- Smart stream adoption — apps running when ASM starts are pulled into
Arctis_Mediainstead of staying on a non-Arctis sink - Manual stream control — move any audio stream between channels via G / C / M / O buttons; choices persist across restarts
- True multichannel output — route apps directly to HDMI or external output (5.1 / 7.1 native passthrough)
- Volume sliders per channel with live percentage display
- Native PipeWire support — detects apps that bypass PulseAudio (mpv, Haruna…)

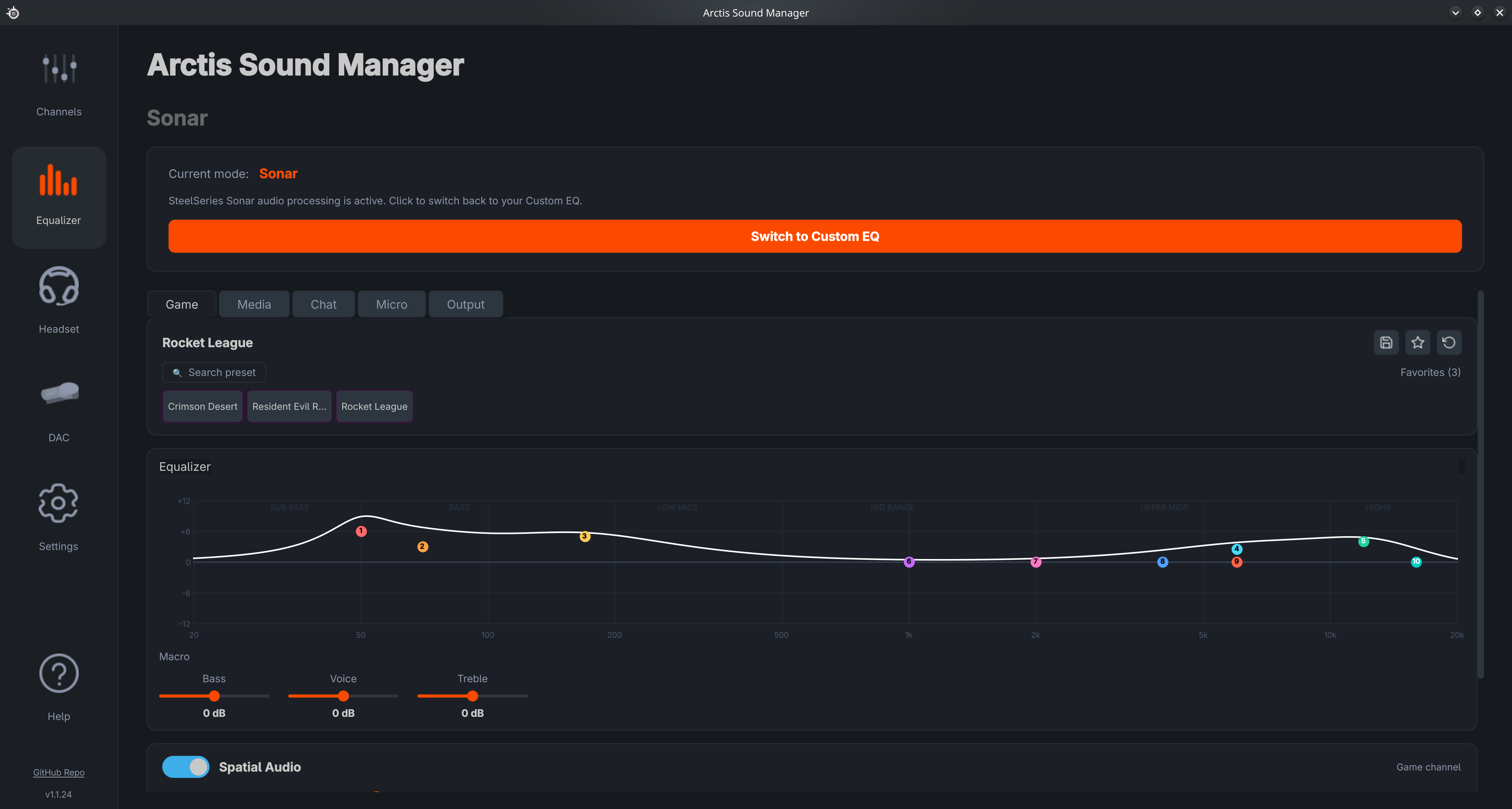

- Sonar EQ — full SteelSeries Sonar-style parametric EQ (Game / Chat / Micro channels):
- Interactive EQ curve, up to 10 bands per channel
- 312 Game presets, 8 Chat, 14 Mic — searchable, 9 favorite slots
- Macro sliders: Bass / Voice / Treble (±12 dB)
- Spatial Audio — HeSuVi virtual 7.1 surround with Immersion (0–12 dB) and Distance (reverb) sliders
- Volume Boost — up to +12 dB gain at the end of the filter chain
- Smart Volume — dynamic compressor (Quiet / Balanced / Loud)
- All changes applied live via PipeWire biquad nodes

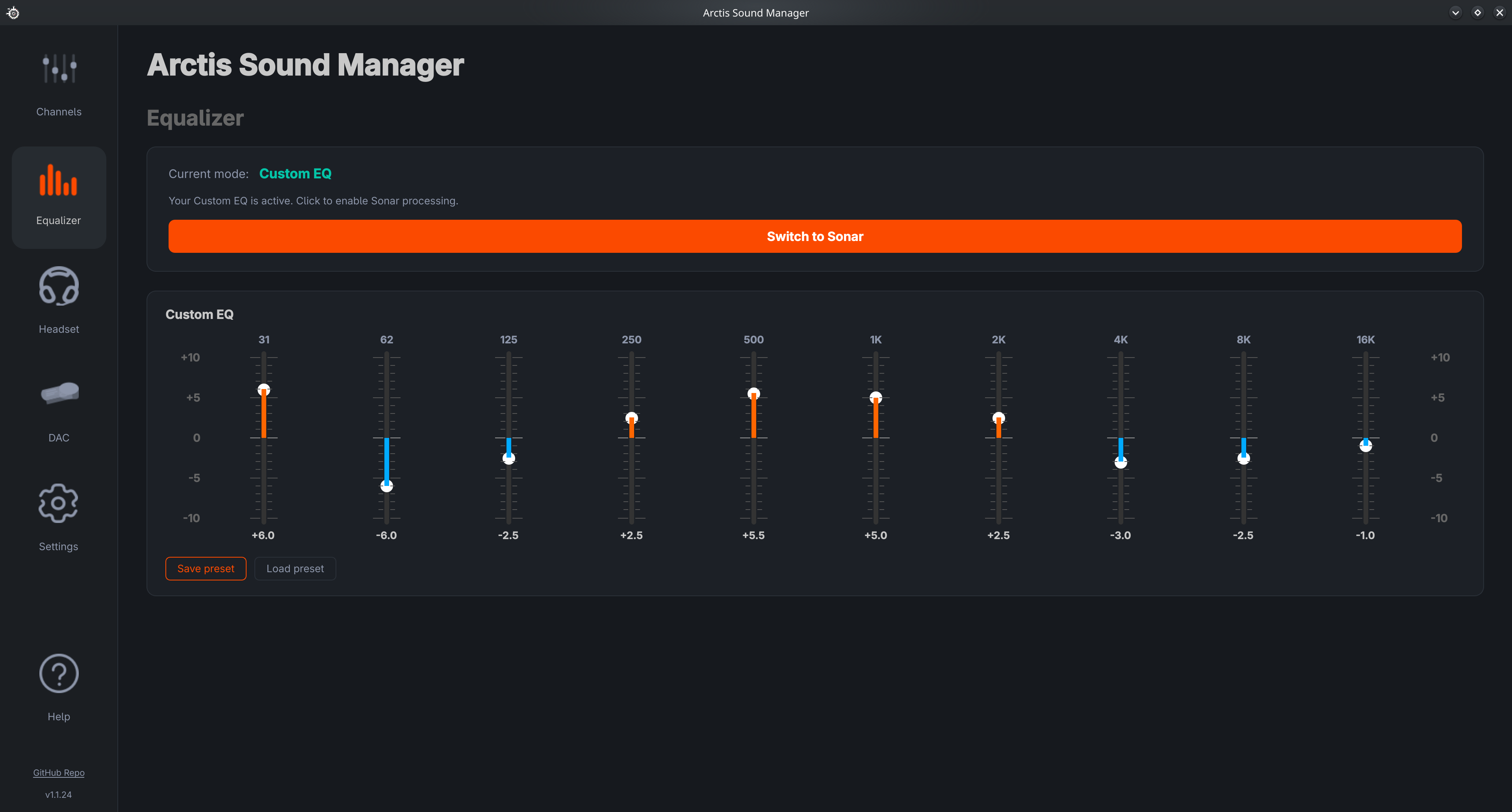

- Custom 10-band EQ — per-band gain (31 Hz – 16 kHz), save/load presets
- Audio Profiles — save and restore your complete configuration in one click (EQ mode, presets, macro values, Spatial Audio, volumes); instant switching from the Home page or system tray
- ANC / Transparent mode — reflects the physical button state in real time
- Device status — battery, mic mute, sidetone, and more

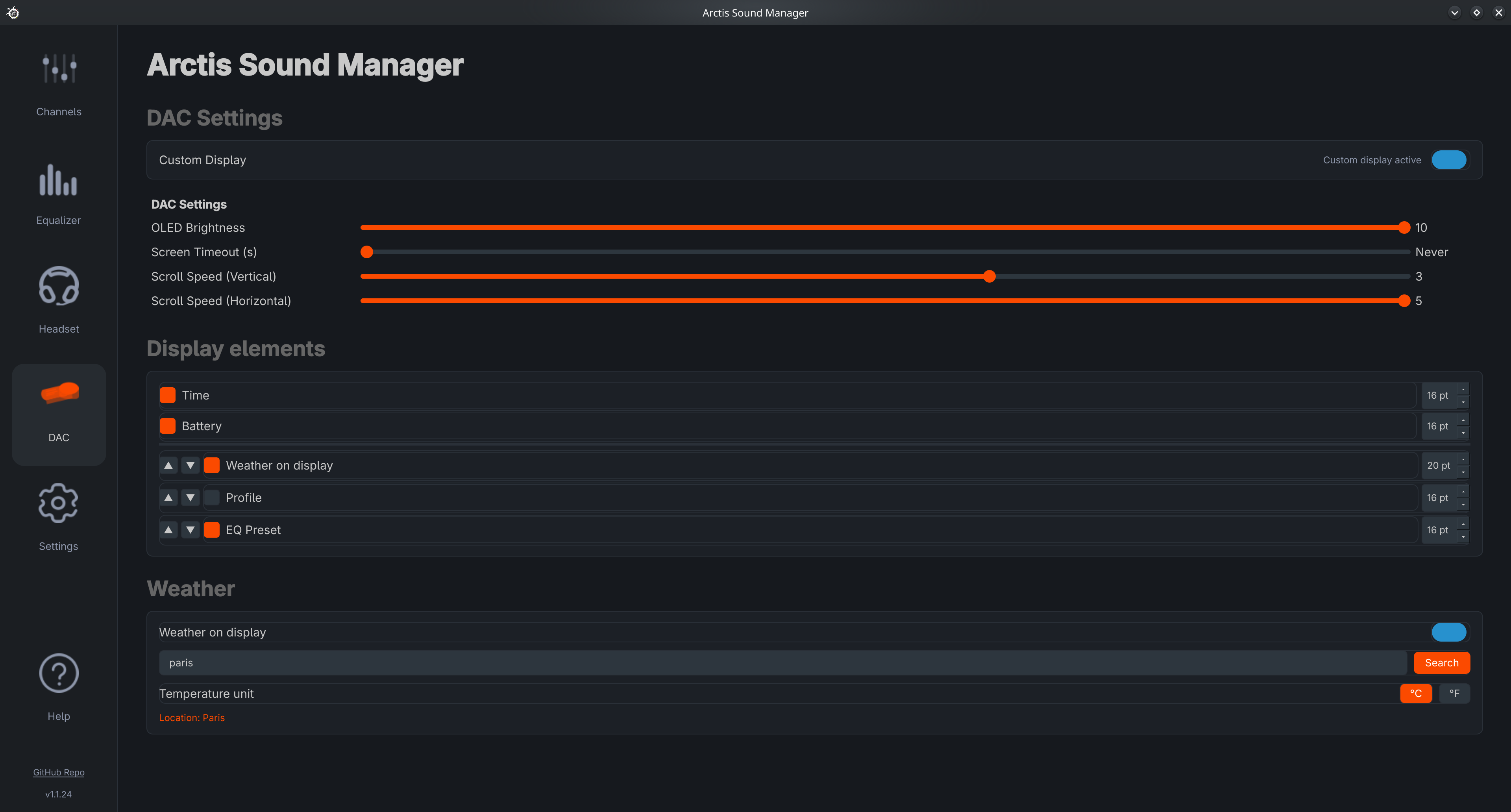

- DAC OLED display (Arctis Nova Pro Wireless / X):
- Toggle original vs custom display mode
- Brightness, screen timeout, scroll speed
- Choose and reorder elements: Time, Battery, Profile, EQ Preset, Weather
- Per-element font size (7–30 pt) · Built-in weather with °C / °F selector
- Self-healing deps — at startup ASM checks every system component (LADSPA plugins, HRIR, PipeWire, wpctl, udev rules…); a one-click dialog installs anything missing with a single
pkexecprompt - Check for updates — in-app button forces an immediate GitHub check; installs via terminal (pacman / dnf / apt) or in-app wheel (pipx)
- One-click bug reports — auto-uploads a full diagnostic as a GitHub gist and opens a pre-filled issue
- Built-in diagnostics —
asm-daemon --verify-setupandasm-cli diagnose -o file.txt - Themes — 5 built-in color themes plus a custom theme editor with live preview and
.iniimport/export (details) - Community translations — new languages from Crowdin download automatically on startup, no release needed
- Help page — built-in manual in English, French and Spanish
ARCTIS_LOG_LEVELenv var —debug/info/warning, honored by daemon, GUI and router
| Home — mixer | Sonar EQ |
|---|---|
 |
 |
| Custom EQ | Settings |
|---|---|
 |
 |
| Headset status | DAC — OLED display control |
|---|---|
 |
 |
| Device | Working | Users | Product ID(s) |
|---|---|---|---|
| Arctis 1 / 7X / 7P Wireless | ✅ | 2 |
|
| Arctis 7 / 7 2019 / Pro 2019 / Pro GameDAC | ✅ | 5 | 1260, |
| Arctis 7+ / PS5 / Xbox / Destiny | ✅ | 8 |
|
| Arctis 9 Wireless | ✅ | 3 | |
| Arctis Pro Wireless | ✅ | 13 |
|
| Arctis Nova Pro Wireless / X | ✅ | 63 |
|
| Arctis Nova Pro Wired / Xbox Wired | ✅ | 7 |
|
| Arctis Nova Pro Omni | ✅ | 3 | |
| Arctis Nova 3 | ✅ | 1 | |
| Arctis Nova 3P / 3X Wireless | ✅ | 8 |
|
| Arctis Nova 5 / 5X | ✅ | 9 |
|
| Arctis Nova 7 Gen 1 | ✅ | 11 |
|
| Arctis Nova 7 Gen 2 | ✅ | 28 |
|
| Arctis Nova 7P | ✅ | 8 | 220a, |
| Arctis Nova Elite | ✅ | 2 |
|
| Arctis GameBuds / GameBuds X | ✅ | 4 |
|
✅ Confirmed by at least one opted-in user 🔴 Seen in telemetry but not yet declared in a device YAML — support pending
Find your headset's Product ID (the 4 hex digits after 1038:):
lsusb -d 1038:If your PID isn't listed above, open an issue with it so support can be added.
All native packages (AUR / COPR / PPA) pull in every dependency automatically. After installing, run asm-setup once — it configures udev rules, systemd services, PipeWire and downloads the HRIR file.
Arch Linux / CachyOS / Manjaro (AUR)
paru -S arctis-sound-manager
asm-setupFedora / Nobara (COPR)
sudo dnf copr enable loteran/arctis-sound-manager
sudo dnf install arctis-sound-manager
asm-setupDebian / Ubuntu (PPA)
sudo add-apt-repository ppa:loteran/arctis-sound-manager
sudo apt update && sudo apt install arctis-sound-manager
asm-setupUbuntu 24.04 (Noble) is the currently supported series. Other series may work via the
.debin each GitHub release.
Immutable distros (Bazzite, SteamOS, Silverblue)
ASM runs inside a Distrobox container and is exported transparently to the host. Run the script for your distro directly — no need to clone:
Bazzite (full deps including noise-suppression-for-voice):
bash <(curl -fsSL https://raw.githubusercontent.com/loteran/Arctis-Sound-Manager/main/scripts/distrobox/bazzite.sh)SteamOS / Steam Deck:
bash <(curl -fsSL https://raw.githubusercontent.com/loteran/Arctis-Sound-Manager/main/scripts/distrobox/steamos.sh)udev rules in
/etc/udev/rules.d/are reset on major SteamOS updates — re-run the script after each upgrade.
Fedora Silverblue / Kinoite:
bash <(curl -fsSL https://raw.githubusercontent.com/loteran/Arctis-Sound-Manager/main/scripts/distrobox/silverblue.sh)Each script is idempotent. Flags: --reinstall (rebuild container), --no-services (skip systemd).
Troubleshooting — text displays as blocks (font rendering issue)
If the ASM interface shows only squares instead of text, your fontconfig cache is likely corrupted. Run inside the Distrobox container:
rm -rf ~/.cache/fontconfig/*
fc-cache -f -vThen restart ASM. (Thanks to H0DG3 for identifying this fix!)
NixOS (flakes or classic)
ASM ships a first-class NixOS module (nix/module.nix) that wires up udev rules, systemd user services, PipeWire filter-chain, and all LADSPA plugins automatically. The module replaces asm-setup, so you normally don't need to run it — but since v1.1.68 it is safe to do so (the crash on the missing update-desktop-database tool has been removed), which is useful for the HRIR repair described below.
Flake-based config — add to your flake.nix:
inputs.arctis-sound-manager = {
url = "github:loteran/Arctis-Sound-Manager?dir=nix";
inputs.nixpkgs.follows = "nixpkgs";
};Then in your nixosSystem modules:
inputs.arctis-sound-manager.nixosModules.default
{
services.pipewire = { enable = true; alsa.enable = true; pulse.enable = true; };
services.arctis-sound-manager.enable = true;
}Classic config (flakes disabled):
git clone https://github.com/loteran/Arctis-Sound-Manager.git /etc/nixos/Arctis-Sound-ManagerIn /etc/nixos/configuration.nix:
imports = [ /etc/nixos/Arctis-Sound-Manager/nix/module.nix ];
services.pipewire = { enable = true; alsa.enable = true; pulse.enable = true; };
services.arctis-sound-manager.enable = true;Then rebuild and replug the headset once so udev applies the new rules:
sudo nixos-rebuild switch
⚠️ Spatial Audio first run — required for Game & Media audio: open ASM → Settings → Spatial Audio and pick any HRIR profile. This copies the selected WAV to~/.local/share/pipewire/hrir_hesuvi/hrir.wav(profiles are bundled, no download needed). Without this step, the Game and Media channels are silent — the filter-chain convolver fails to load and only the Chat channel (which has no convolver) produces audio.
Stub HRIR file (installs older than v1.1.68): the HRIR file shipped in the Nix store is a read-only 3.6 KB stub (epoch timestamp) that leaves Game and Media silent. Since v1.1.68,
asm-setupdetects undersized HRIR files and replaces them automatically. On an older install, repair it manually:rm ~/.local/share/pipewire/hrir_hesuvi/hrir.wav && asm-setup
KDE audio popup: the small "Audio Volume" widget in the KDE taskbar only shows physical hardware sinks. The ASM virtual channels (Arctis_Game / Arctis_Chat / Arctis_Media) appear in
pavucontrol→ Playback tab or in KDE System Settings → Audio → Applications. Use those to route each app to the right channel.
Full module docs and options: nix/README.md.
Other distros (from source)
Install system deps first:
# Debian / Ubuntu
sudo apt install pipx libusb-1.0-0 libpulse0 libudev1 swh-plugins noise-suppression-for-voice curl
# Fedora / Nobara
sudo dnf install pipx libusb1 pulseaudio-libs systemd-libs ladspa-swh-plugins curl
sudo dnf copr enable uriesk/noise-suppression-for-voice
sudo dnf install noise-suppression-for-voiceThen install ASM:
git clone --branch main https://github.com/loteran/Arctis-Sound-Manager.git
cd Arctis-Sound-Manager
bash scripts/install.shPATH tip: if
asm-cliorasm-daemonare not found after install, run:echo 'export PATH="$HOME/.local/bin:$PATH"' >> ~/.bashrc && source ~/.bashrc
USB permissions: if the headset isn't detected, ASM shows a one-click Install rules dialog at startup. Manual fallback:
sudo asm-cli udev write-rules --force --reload
After asm-setup completes, launch the GUI with:
asm-guiOr find Arctis Sound Manager in your application launcher (KDE, GNOME, etc.).
The daemon (
arctis-manager.service) starts automatically at login — the GUI is separate and must be opened manually the first time.
asm-gui --systrayStarts minimised to the system tray. From there you can switch Audio Profiles, open the full window, or quit. This is the recommended mode for daily use.
The easiest way is the in-app toggle: Settings → General → Start with system — ASM handles the correct setup for your desktop environment automatically.
If the toggle doesn't work for your DE, use the manual method:
KDE Plasma / GNOME (systemd user session)
systemctl --user enable --now arctis-gui.serviceAn arctis-gui.service unit is installed by asm-setup. If missing:
asm-cli desktop write
systemctl --user daemon-reload
systemctl --user enable --now arctis-gui.serviceHyprland / Sway / other wlroots compositors
Add to ~/.config/hypr/hyprland.conf (or your compositor's startup config):
exec-once = asm-gui --systrayi3 / bspwm / other X11 WMs
Add to your WM startup file (~/.config/i3/config, ~/.xinitrc, etc.):
asm-gui --systray &Or create an XDG autostart entry:
asm-cli desktop write # writes ~/.config/autostart/arctis-sound-manager.desktopArch / CachyOS / Manjaro
paru -Syu arctis-sound-manager && asm-setupFedora (COPR)
sudo dnf upgrade arctis-sound-manager && asm-setupDebian / Ubuntu (PPA)
sudo apt update && sudo apt upgrade arctis-sound-manager && asm-setupFrom source
cd Arctis-Sound-Manager && git pull
pipx install --force .
asm-cli desktop write
asm-cli udev write-rules --force --reload
systemctl --user daemon-reload && systemctl --user restart arctis-manager.service
pipx upgrademay fail on wheel installs — usepipx install --force .instead.
ASM creates 3 virtual sinks on top of your Arctis device plus one external output:
| Sink | Default use | Button |
|---|---|---|
| Arctis_Game | Games, general audio | G |
| Arctis_Chat | Voice apps (Discord, TeamSpeak…) | C |
| Arctis_Media | Browsers, video players | M |
| External Output | HDMI, USB speakers, sound card… (5.1 / 7.1 native) | O |
The media router (asm-router) automatically moves browsers and video players to Arctis_Media. Manual placements via G / C / M / O buttons are saved as persistent overrides.
The External Output card routes audio directly to the physical sink, bypassing virtual stereo sinks — this preserves true 5.1 / 7.1 passthrough. Configure it in Settings → Audio → External Output Device.
ASM lets you share any Sonar EQ preset with one click and import presets shared by the community.
- Open the Sonar EQ tab and select or create a preset.
- Click the Share button (export icon) next to the preset name.
- Choose how to share:
- Copy link — copies an
arctis-asm://import?data=…deep link to your clipboard. - Save as file — saves a
.jsonfile you can send directly. - Publish to community — opens a browser form pre-filled with your preset data; sign in with GitHub and submit.
- Copy link — copies an
- Open the Sonar EQ tab.
- Click Import preset (import icon).
- Paste one of the supported link formats, then click Import:
- ASM deep link —
arctis-asm://import?data=…(generated by ASM's Share button) - SteelSeries community link —
https://www.steelseries.com/deeplink/gg/sonar/config/v1/import?url=…(links from the SteelSeries community or GG software)
- ASM deep link —
ASM automatically detects the link format, downloads the preset if needed, and saves it locally.
You can also double-click an
arctis-asm://link in a browser if you registered the URL handler withasm-setup.
loteran.github.io/asm-presets — browse, vote for, and download EQ presets shared by the community.
| Action | How |
|---|---|
| Browse presets | Open the site — no login required |
| Filter by channel / device | Use the search bar and dropdowns |
| Import a preset into ASM | Click Import in ASM on any card |
| Vote for a preset | Click the ♡ button (requires GitHub login) |
| Publish a preset | Click Share a Preset, sign in with GitHub, fill in the form |
| Delete your preset | Click 🗑 on your own preset card (only visible when logged in) |
Virtual 7.1 surround is included automatically with the install — it deploys a PipeWire HeSuVi filter-chain and downloads the HRIR file. 57 HRIR profiles are bundled and selectable from the Settings tab with instant apply.
┌──────────────────────────┐
7.1 audio source │ Virtual Surround Sink │
(game, movie…) ──► (PipeWire filter-chain) ├──► Headset (stereo)
└──────────────────────────┘
Also available as a standalone repo: arctis-virtual-surround — install virtual surround independently with a single
bash install.sh.
Manual setup (alternative)
bash scripts/setup-surround.shThis installs the filter-chain config in ~/.config/pipewire/filter-chain.conf.d/, downloads the HRIR file, and enables the filter-chain systemd user service.
Advanced: replace ~/.local/share/pipewire/hrir_hesuvi/hrir.wav with any 14-channel HeSuVi-compatible WAV and restart filter-chain manually.
ASM ships 5 built-in color themes: SteelSeries (default), Aurora Glass, Neon Pulse, Slate Premium and Arctic. Switch themes from the dropdown in Settings → Interface Theme — the change applies live to every page, dialog and the tray menu, no restart needed.
Click Create theme in Settings to open the theme editor:
- 15 color pickers grouped into Backgrounds, Accents, Text and Audio channels
- Live preview — the whole app restyles as you pick colors
- Start from scratch or duplicate any existing theme via Duplicate from
User themes are saved as .ini files in ~/.config/arctis-sound-manager/themes/.
- Export theme — saves any theme as an
.inifile you can share - Import theme — loads a shared
.inifile and adds it to your theme list
Built-in themes cannot be edited or deleted — duplicate one into a custom theme instead.
ASM supports community translations via Crowdin. No release is needed — the app checks GitHub on every startup and silently downloads any updated .ini files.
| Language | Status |
|---|---|
| English | Source (always complete) |
| Français | Bundled |
| Español | Bundled |
| Your language? | Contribute on Crowdin ↗ |
How it works:
- Every day at 06:00 UTC, a GitHub Action pulls approved translations from Crowdin and opens a PR
- On each startup, ASM fetches updated files and saves them to
~/.config/arctis_manager/lang/ - The language selector in Settings updates immediately — no restart needed
- Languages below 80% coverage fall back string-by-string to English
To request a new language, open a GitHub issue. See CONTRIBUTING.md for full details.
Based on 175 unique users (57312 anonymous data points) — last updated 2026-06-20
Anonymous usage data shared voluntarily by opted-in users. View interactive dashboard →
Tested distributions
| Distribution | Install method | Users |
|---|---|---|
| CachyOS | 🎯 AUR | 👥 81 |
| Arch Linux | 🎯 AUR | 👥 24 |
| Nobara Linux 43 (KDE Plasma Desktop Edition) | 🎯 COPR | 👥 13 |
| Fedora Linux 44 (KDE Plasma Desktop Edition) | 🎯 COPR | 👥 9 |
| Ubuntu 26.04 LTS | 🎯 PPA | 👥 8 |
| Ubuntu 24.04.4 LTS | 🎯 PPA | 👥 5 |
| Linux Mint 22.3 | 🎯 PPA | 👥 5 |
| Garuda Linux | 🎯 AUR | 👥 5 |
| Pop!_OS 24.04 LTS | 🎯 PPA | 👥 3 |
| Fedora Linux 44 (Workstation Edition) | 🎯 COPR | 👥 3 |
| Artix Linux | 🎯 AUR | 👥 3 |
| SteamOS | 📦 Source | 👥 2 |
| NixOS 26.11 (Zokor) | 📦 Source | 👥 2 |
| Manjaro Linux | 🎯 AUR | 👥 2 |
| EndeavourOS | 🎯 AUR | 👥 2 |
| SUSE Linux Enterprise Server for SAP Applications 12 SP2 | 📦 Source | 👥 1 |
| Russian Nuclear Submarine Ballast Management Controller BMC (OpenBMC Project Reference Distro) 2.8.2-34 | 📦 Source | 👥 1 |
| PikaOS 4 | 📦 Source | 👥 1 |
| NixOS 26.05 (Yarara) | 📦 Source | 👥 1 |
| Fedora Linux 43 (Workstation Edition) | 🎯 COPR | 👥 1 |
| Fedora Linux 43 (KDE Plasma Desktop Edition) | 🎯 COPR | 👥 1 |
| Fedora Linux 43 (Cinnamon) | 🎯 COPR | 👥 1 |
| Debian GNU/Linux 13 (trixie) | 🎯 PPA | 👥 1 |
Most used headsets & distros
| Headset | Installs |
|---|---|
| Arctis Nova Pro Wireless | 63 |
| Arctis Nova 7 (Gen 2) | 28 |
| Arctis Pro Wireless | 13 |
| Arctis Nova 7 (Gen 1) | 11 |
| Arctis Nova 3 | 9 |
| Arctis Nova 7P (Gen 2) | 8 |
| Arctis 7+ | 8 |
| Arctis Nova 5 Wireless | 8 |
| Arctis Nova Pro Wired | 7 |
| Arctis 7/Pro Gaming | 5 |
| Arctis 9 Wireless | 3 |
| Arctis GameBuds | 3 |
| Arctis Nova Pro Omni | 3 |
| Arctis Nova Elite | 2 |
| Arctis 1/7X/7P Wireless | 2 |
| Arctis GameBuds X | 1 |
| Arctis Nova 5X (PID 2255) | 1 |
| Distribution | Installs |
|---|---|
| CachyOS | 81 |
| Arch Linux | 24 |
| Nobara Linux 43 (KDE Plasma Desktop Edition) | 13 |
| Fedora Linux 44 (KDE Plasma Desktop Edition) | 9 |
| Ubuntu 26.04 LTS | 8 |
| Ubuntu 24.04.4 LTS | 5 |
| Linux Mint 22.3 | 5 |
| Garuda Linux | 5 |
| Pop!_OS 24.04 LTS | 3 |
| Fedora Linux 44 (Workstation Edition) | 3 |
| Artix Linux | 3 |
| SteamOS | 2 |
| NixOS 26.11 (Zokor) | 2 |
| Manjaro Linux | 2 |
| EndeavourOS | 2 |
Native packages ship a cleanup hook — paru -R / dnf remove / apt remove removes PipeWire configs and restarts pipewire automatically. Audio profiles in ~/.config/arctis_manager/profiles/ are preserved by default.
paru -R arctis-sound-manager # Arch / CachyOS / Manjaro
sudo dnf remove arctis-sound-manager # Fedora
sudo apt remove arctis-sound-manager # Debian / UbuntuFor source/pipx installs or a full wipe, use the standalone uninstaller:
bash scripts/uninstall.sh # interactive, auto-detects install method
# or without cloning:
curl -fsSL https://raw.githubusercontent.com/loteran/Arctis-Sound-Manager/main/scripts/uninstall.sh | bashUninstall flags
--pipx # only the pipx install
--pkg # only the distro package
--all # both (for duplicate installs)
--all --purge # also wipe PipeWire configs, HRIR, systemd units, udev rules
--yes # non-interactive--purge still preserves ~/.config/arctis_manager/profiles/. A final prompt offers to delete them too for a true clean slate.
Open ASM → Help page → Report a Bug. The dialog collects a full diagnostic (version, libs, distro, PipeWire state, USB devices, udev rules, last 100 log lines) and either:
- Submits automatically via
ghCLI — uploads as a secret gist and opens a pre-filled issue - Opens GitHub manually — saves the report to
~/.cache/arctis-sound-manager/reports/for drag-and-drop
asm-daemon --verify-setup # preflight checks, exits 0/1 with per-distro install hints
asm-cli diagnose -o /tmp/asm.txt # full local diagnostic dump
ARCTIS_LOG_LEVEL=debug systemctl --user restart arctis-manager
journalctl --user -u arctis-manager -f- Describe expected vs actual behaviour — "Game channel silent after switching to Sonar EQ" beats "audio broken"
- Include steps to reproduce
- One issue per report
python src/arctis_sound_manager/scripts/daemon.py # daemon
python src/arctis_sound_manager/scripts/gui.py --no-enforce-systemd # GUI
python src/arctis_sound_manager/scripts/video_router.py # media routerShow project structure
src/arctis_sound_manager/
│
├── scripts/ # Entry points (installed as CLI commands)
│ ├── daemon.py # asm-daemon — device manager service
│ ├── gui.py # asm-gui — graphical interface
│ ├── video_router.py # asm-router — automatic media routing
│ ├── cli.py # asm-cli — udev / desktop / diagnose tools
│ └── setup.py # asm-setup — post-install automation
│
├── gui/ # PySide6 user interface
│ ├── main_app.py # Main window + sidebar navigation
│ ├── home_page.py # Audio mixer (Game / Chat / Media / Output cards)
│ ├── sonar_page.py # Sonar EQ — presets, Spatial Audio, macro sliders
│ ├── equalizer_page.py # Custom EQ mode toggle + 10-band sliders
│ ├── headset_page.py # Device info and live status (battery, mic, ANC)
│ ├── device_page.py # App settings (language, startup, update check)
│ ├── dac_page.py # GameDAC OLED control (clock, weather, brightness)
│ ├── help_page.py # Built-in user manual (EN / FR / ES)
│ ├── theme.py # Theme engine — built-in + user themes, QSS
│ ├── theme_editor_page.py # Custom theme editor with live preview
│ ├── eq_curve_widget.py # Interactive parametric EQ curve (biquad RBJ)
│ ├── sonar_toggle_widget.py # Sonar ↔ custom EQ toggle + spatial audio switch
│ ├── anc_widget.py # ANC / Transparent mode control
│ ├── profile_bar.py # Audio profile quick-switch bar
│ ├── systray_app.py # System tray icon + single-instance IPC
│ ├── tray_eq_presets.py # Tray menu EQ preset switcher
│ ├── status_widget.py # Headset status widget (battery, mic, sidetone)
│ ├── settings_widget.py # Settings panel (theme, language, paths)
│ ├── preset_import_dialog.py # Preset import (ASM link / SteelSeries link / file)
│ ├── preset_export_dialog.py # Preset export (copy link / save file / publish)
│ ├── preset_share.py # Preset sharing helpers (deep link encode/decode)
│ ├── report_dialog.py # One-click bug report (gist + GitHub issue)
│ ├── system_deps_dialog.py # Self-healing deps check dialog
│ ├── install_dialogs.py # Package install confirmation dialogs
│ ├── udev_dialog.py # udev rules install / reload dialog
│ ├── first_run_dialog.py # First-run wizard (udev, services, HRIR)
│ ├── telemetry_dialog.py # Anonymous telemetry opt-in dialog
│ ├── dbus_wrapper.py # Synchronous D-Bus client (daemon ↔ GUI bridge)
│ ├── components.py # Reusable UI components (cards, sliders, buttons)
│ ├── ui_utils.py # UI helpers (DPI scaling, icon loading)
│ ├── base_app.py # Shared QApplication base
│ ├── main_app_proto_widget.py # Prototype widget base for pages
│ └── presets/ # Bundled Sonar presets (Game / Chat / Mic)
│
├── core.py # CoreEngine — USB lifecycle, polling, device init
├── config.py # Device YAML parsing + settings definitions
├── constants.py # XDG-compliant path constants (config, data, lang)
├── device_state.py # Shared physical-node names for audio routing
├── dbus_service.py # D-Bus interfaces (Settings / Status / Config)
├── loopback_manager.py # Dynamic pw-loopback sinks (Arctis_Game/Chat/Media)
├── sonar_to_pipewire.py # PipeWire filter-chain (EQ) config generator
├── pw_utils.py # Native PipeWire stream management + routing overrides
├── pactl.py # PulseAudio / PipeWire sink and stream helpers
├── service_control.py # Single entry point for systemctl / dinitctl
├── profile_manager.py # Audio profiles — snapshot, save, load, apply
├── settings.py # Persistent settings (JSON, XDG-compliant)
├── preset_sync.py # EQ preset sync (cloud ↔ local)
├── eq_types.py # EQ band data types (EqBand, BandType…)
├── oled_renderer.py # OLED image renderer (PIL)
├── oled_protocol.py # OLED HID framing (per-device interface / report id)
├── oled_manager.py # OLED scroll / animation loop + weather clock
├── weather_service.py # Weather fetch for the OLED (Open-Meteo)
├── hrir_catalog.py # HRIR profile catalog (57 bundled profiles)
├── bug_reporter.py # Diagnostic collector for bug reports
├── diagnose.py # asm-cli diagnose — full system diagnostic dump
├── system_deps_checker.py # Startup self-healing dependency checker
├── udev_rules.py # udev rule generation (SteelSeries USB rules)
├── udev_checker.py # udev rule presence / content verifier
├── update_checker.py # GitHub release update checker
├── lang_updater.py # Online translation updater (GitHub → ~/.config)
├── telemetry.py # Anonymous opt-in usage telemetry
├── autostart.py # Autostart management (systemd / XDG / DE-specific)
├── init_system.py # Init system detection (systemd vs dinit)
├── systemd.py # systemd user unit helpers
├── status_parser_fn.py # USB HID status frame parser (battery, mic, ANC…)
├── usb_devices_monitor.py # USB hotplug monitor (pyudev)
├── cli_tools.py # Shared CLI utilities
├── log_setup.py # Logging configuration (ARCTIS_LOG_LEVEL)
├── i18n.py # Translation singleton with EN fallback
├── utils.py # Misc helpers
├── lang/ # Bundled translation files (.ini, one per language)
└── devices/ # Per-device configuration YAMLs
scripts/
├── install.sh # Source installer
├── uninstall.sh # Interactive uninstaller (pipx / pkg / all)
├── setup-surround.sh # Standalone virtual surround setup
├── distrobox/ # Distrobox scripts (Bazzite, SteamOS, Silverblue)
├── pipewire/ # PipeWire config templates
└── reverse-engineering/ # USB capture + opcode-decode helpers (new devices)
nix/ # NixOS module
├── module.nix # NixOS module (udev, systemd, filter-chain, LADSPA)
├── package.nix # Nix derivation
└── README.md # NixOS-specific documentation
Tried ASM on your headset or distro? Found a bug or have a feature idea?
Your feedback helps improve compatibility for everyone — especially for headsets not yet confirmed working.
Thanks to everyone who has contributed code, fixes, or community support:
| Contributor | Contribution |
|---|---|
| Michsior14 | Fix Arctis 7+ power status recognition (#67) |
| H0DG3 | Identified the fontconfig cache fix for font rendering on Bazzite/Distrobox |
| cookiekiller | Diagnosed the loopback watchdog orphan-recreation bug (#84); detailed analysis and fix suggestions for per-channel EQ coupling, Discord routing override, and weather log spam (#85) |
This project is licensed under the GNU General Public License v3.0.
The majority of the source code is original work — Copyright (C) 2026 loteran.
25 files are partially derived from Linux Arctis Manager by Giacomo Furlan (elegos), used under GPL-3.0 — Copyright (C) 2022 Giacomo Furlan (elegos).
