Releases: maxitg/PostTagSystem

Initial release

14 Mar 17:20
71449c0
Compare
Choose a tag to compare
Initial release Pre-release
Pre-release

The initial version of the PostTagSystem package.

Features

  • Bit-packed evaluation of three tag systems ("Post", "002211" and "000010111") with GenerateTagSystemHistory, GeneratePostTagSystemHistory and PostTagSystemFinalState functions:
In[] := GenerateTagSystemHistory["Post", {0, {1, 1, 1, 1, 1, 1, 1, 1, 1, 1}}, 1000000, {"PowerOfTwoEventCounts"}]
Out[] = <|"EventCount" -> 4120, "MaxTapeLength" -> 69, "FinalState" -> {0, {0, 1, 1, 1, 0, 0, 0, 1, 1, 1, 0, 0}}|>
  • Generation of Post system state graphs with PostTagSystem function:
In[] := PostTagSystem[{0, {1, 1, 1, 1, 1, 1}}]["StateGraph"]


  • Conversion to and from packed states with FromPackedTagSystemState and ToPackedTagSystemState functions:
In[] := FromPackedTagSystemState["Post"][{0, {1, 1, 1, 1, 1, 1}}]
Out[] = {1, _, _, 1, _, _, 1, _, _, 1, _, _, 1, _, _, 1, _, _}

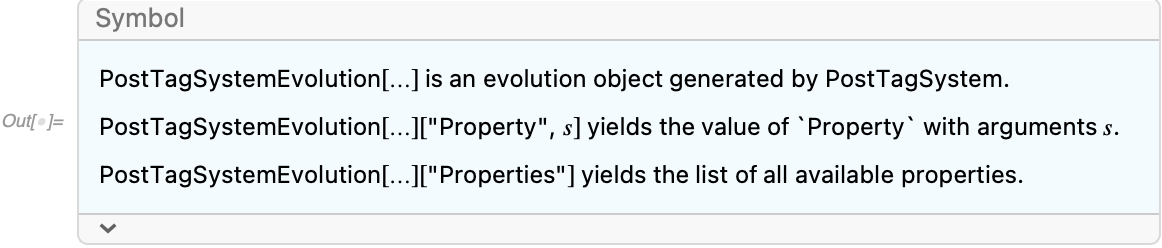

  • All functions have usage messages:
In[] := ? PostTagSystemEvolution
